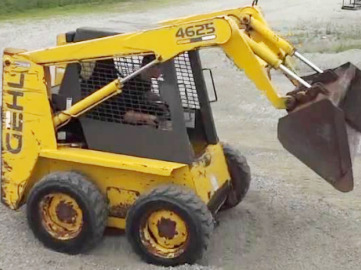

Gehl 4625 Specifications
The
Gehl 4625 skid steer loader driveline system components: a 134.1 cu.in (2.2L)
Kubota V2203 vertical four-cylinder water-cooled diesel engine with a rated
power of 45.4 hp (33.8 kW), and single-speed hydrostatic transmission. The
hydraulic system has a pump with a rated capacity of 18 gal/min (68.2 l/min).
The system relief pressure is 3000 psi (207 bar). The Gehl 4625 is equipped with
radial-lift loader boom, 80H roller chains, and 10.5x15 or 29-12.5x15 tires. The
skid steer loader has a maximum lift height of 114.8" (2915 mm) to hinge pin and
dump height of 90.9" (2310 mm). The rated operating capacity is 1350 lbs (615
kg), and tipping load is 2700 lbs (1230 kg).
| Engine Specs |
Engine Model ...................... Kubota V2203
Engine Type ...................... Vertical water-cooled 4-cylinder diesel
Number of Cylinders ...................... Four
Displacement, cu.in (L) ...................... 134.1 (2.2)
Cylinder Bore, in (mm) ...................... 3.43 (87.0)
Piston Stroke, in (mm) ...................... 3.64 (92.4)
Aspiration ...................... Naturally aspirated
Rated Engine Power, hp (kW) ...................... 45.4 (33.8)
Rated Engine Speed, rpm ...................... 2600
Maximum Torque, Nm (lb-ft) ...................... 146 (108)
Torque Speed, rpm ...................... 1600
Idle Speed, rpm ...................... 1075-3000
Compression Ratio ...................... 22.6:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Direct injection
Lubricating System ...................... Pressure lubrication with filter
Combustion Chamber ...................... Spherical type (E-TVCS)
Fuel Tank Capacity, gal (L) ...................... 11.2 (42.3)
Oil Capacity, qts (L) ...................... 10.0 (9.5)
Coolant Capacity, qts (L) ...................... 12.0 (11.3)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 35
| Drive Train |
Drive System Type ...................... Hydrostatic, 4-wheel drive
Number of Gears ...................... Single
Chain Drive Type ...................... 80H roller chain
Tire Size (Std) ...................... 10x16.5
Tire Size (Opt) ...................... 29-12.5x15
Chaincase Capacity, qts (L) ...................... 6.0 (5.7)
Planetary Gearbox Capacity, qts (L) ...................... 1.0 (0.9)
Forward Speed, mph (km/h) ...................... 7.0 (11.2)
Reverse Speed, mph (km/h) ...................... 7.0 (11.2)
| Hydraulic System |
Hydraulic System Type ...................... Open center
Pump Flow, gpm (Lpm) ...................... 18.0 (68.2)
System Pressure, Bar (psi) ...................... 207 (3000)
Hydraulic Reservoir Capacity, gal (L) ...................... 10.0 (37.9)
Number of Valves ...................... 3
| Loader Performance |
Rated Operating Capacity, lbs (kg) ...................... 1350 (615)
Tipping Load, lbs (kg) ...................... 2700 (1230)
Loader Boom Type .................... Radial-lift
| Dimensions and Weight |
Wheelbase (Nominal), in (mm) ...................... 37.3 (945)
Height (Operator Cab), in (mm) ...................... 76.5 (1945)
Height (Boom Raised), in (mm) ...................... 144.4 (3660)
Length (w/o Bucket), in (mm) ...................... 92 (2335)
Length (Bucket On Ground), in (mm) ...................... 118.2 (3000)
Width (w/o Bucket), in (mm) ...................... 62 (1575)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 114.8 (2915)
Dump Angle At Max Height, deg ...................... 38
Dump Height (Fully Raised), in (mm) ...................... 90.9 (2310)
Dump Reach At Max Height, in (mm) ...................... 23 (585)
Rollback Angle At Ground Level, deg ...................... 32
Rollback Angle At Max Height, deg ...................... 105
Departure Angle, deg ...................... 25
Grading Angle, deg ...................... 102
Bucket Width, in (mm) ...................... 65 (1650)
Ground Clearance, in (mm) ...................... 7.7 (195)
Turning Radius (w/Bucket), in (mm) ...................... 72 (1840)
Shipping Weight, lbs (kg) ...................... 4715 (2140)
Operating Weight, lbs (kg) ...................... 5180 (2350)
