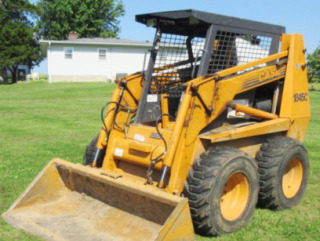

Case 1845C Specifications
The
Case 1845C skid steer loader is powered by 239 cu.in (3.9L) Case 4-390
4-cylinder direct injection naturally aspirated liquid-cooled diesel engine with
a rated power of 60 hp (45 kW) at 2200 rpm. The Case 1845C is equipped with a
hydrostatic transmission, radial-lift boom, 80HT continuous roller chains, and
12x16.5 standard tires. The hydraulic system has a gear pump with fluid flow
rate of 16 gpm (60.5 lpm). The hydraulic pressure is 2300 psi (159 bar). The
skid steer loader has a rated operating capacity of 1750 lbs (795 kg) and
tipping load of 3545 lbs (1608 kg). The boom lifting force is 3450 lbs (1568
kg), and bucket breakout force is 4690 lbs (2130 kg).
| Engine Specs |
Engine Model .................. Case 4-390
Engine Type .................. 4-Stroke direct injection liquid-cooled diesel
Number of Cylinders .................. 4
Displacement, cu in (L) .................. 239 (3.90)
Engine Bore, in (mm) .................. 4.02 (102.0)
Engine Stroke, in (mm) .................. 4.72 (120.0)
Aspiration .................. Naturally aspirated
Rated Engine Power, hp (kW) .................. 60.0 (45.0)
Rated Engine Speed, rpm .................. 2200
Maximum Torque, Nm (ft-lb) .................. 243 (179)
Torque Speed, rpm.................. 1300
Compression Ratio .................. 17.0:1
Firing Order .................. 1-3-4-2
Fuel System .................. Injection pump
Governor Type .................. Mechanical flyweight
Lubricating System .................. Positive pressure
Cooling System .................. Pressurized
Air Cleaner Type .................. Dry type
Fuel Tank Capacity, gal (L) .................. 21.5 (81.4)
Oil Capacity, qts (L) .................. 6.7 (6.3)
Coolant Capacity, qts (L) .................. 18.0 (17.0)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 65
| Drive Train |
Drive System Type .................. Hydrostatic, 4 wheel drive
Number of Gears .................. Single
Drive Pump Type .................. Tandem, axial piston
Chain Drive Type .................. 80HT continuous roller chain
Brakes Type .................. Independent wet disc
Final Drive Type .................. Dual-reduction chain drive
Tire Size (Std) .................. 12x16.5
Tire Size (Opt) .................. 15.5x16.5
Chain Case Oil Capacity (per side), qts (L) .................. 5.0 (4.7)
Forward Speed (Max), mph (kph) .................. 6.0 (9.7)
Reverse Speed (Max), mph (kph) .................. 6.0 (9.7)
| Hydraulic System |
Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow, gpm (Lpm) .................. 16.0 (60.5)
System Pressure, Bar (psi) .................. 159 (2300)
Hydraulic Reservoir Capacity, gal (L) .................. 5.7 (21.8)
Hydraulic System Capacity, gal (L) .................. 10.5 (39.8)
Number of Valves .................. 2
| Loader Performance |
Rated Operating Capacity, lbs (kg) .................. 1750 (795)
Tipping Load, lbs (kg) .................. 3545 (1608)
Boom Lifting Force, lbs (kg) .................. 3450 (1568)
Bucket Breakout Force, lbs (kg) .................. 4690 (2130)
Loader Boom Type .................. Radial-lift
| Dimensions and Weight |
Wheelbase, in (mm) .................. 40.5 (1030)
Height (Operator Cab), in (mm) .................. 80.3 (2040)
Height (Boom Raised), in (mm) .................. 145.5 (3690)
Length (w/o Bucket), in (mm) .................. 101.3 (2570)
Length (Bucket On Ground), in (mm) .................. 132.4 (3360)
Width (w/o Bucket), in (mm) .................. 50 (1270)
Height to Hinge Pin (Fully Raised), in (mm) .................. 116.8 (2970)
Dump Angle At Max Height, deg .................. 41
Dump Height (Fully Raised), in (mm) .................. 89.5 (2270)
Dump Reach At Max Height, in (mm) .................. 23 (585)
Rollback Angle At Ground Level, deg .................. 30
Rollback Angle At Max Height, deg .................. 62
Departure Angle, deg .................. 25
Bucket Width, in (mm) .................. 63 (1600)
Ground Clearance, in (mm) .................. 8 (205)
Turning Radius (w/Bucket), in (mm) .................. 78 (1980)
Shipping Weight, lbs (kg) .................. 5450 (2475)
Operating Weight, lbs (kg) .................. 6185 (2805)
