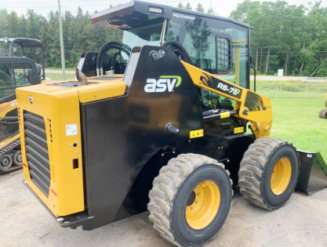

ASV RS-75 Specifications
The
ASV RS-75 skid steer loader is powered by 177 cu.in (2.9L) Deutz TD2.9L4
vertical four-cylinder turbocharged diesel engine with a rated power of 74 hp
(55 kW) at 2800 rpm. The ASV RS75 is equipped with a two-speed hydrostatic
transmission, 100 ANSI continuous roller chains, and 12x16.5 standard tires. The
hydraulic system has a gear pump with fluid flow rate of 22 gpm (83.2 lpm) or
30.9 gpm (117 lpm). The hydraulic pressure is 3335 psi (230 bar). The skid steer
loader has a rated operating capacity of 2600 lbs (1180 kg) and tipping load of
5200 lbs (2360 kg). The lift height is 125 inches (3175 mm) to hinge pin, and
dump height is 100 inches (2540 mm).
| Engine Specs |
Engine Model ...................... Deutz TD2.9L4
Engine Type ...................... Vertical 4-cycle turbocharged diesel
Number of Cylinders ...................... 4, in-line
Displacement, cu.in (L) ...................... 177 (2.9)
Cylinder Bore, in (mm) ...................... 3.61 (92.0)
Piston Stroke, in (mm) ...................... 4.33 (110.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 74.0 (55.0)
Rated Engine Speed, rpm ...................... 2800
Maximum Torque, Nm (lb-ft) ...................... 260 (192)
Torque Speed, rpm ...................... 1800
Firing Order ...................... 1-3-4-2
Fuel System ...................... Common rail
Lubricating System ...................... Forced lubrication by gear pump
Cooling System ...................... Engine-driven fan and radiator
Air Cleaner Type ...................... Dual stage
Fuel Tank Capacity, gal (L) ...................... 28.0 (106.0)
Oil Capacity, qts (L) ...................... 9.0 (8.5)
Coolant Capacity, qts (L) ...................... 20.2 (19.0)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 95
| Drive Train |
Drive System Type ...................... Hydrostatic, 4 wheel drive
Number of Gears ...................... 2 (Low/High)
Chain Drive Type ...................... 100 ANSI continuous roller chain
Brakes Type ...................... Independent wet disc
Tire Size ...................... 12x16.5
Forward Speed (Low), mph (kph) ...................... 8.2 (13.1)
Forward Speed (High), mph (kph) ...................... 11.0 (17.7)
Reverse Speed (Low), mph (kph) ...................... 8.2 (13.1)
Reverse Speed (High), mph (kph) ...................... 11.0 (17.7)
| Hydraulic System |
Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Flow (Std), gpm (Lpm) ...................... 22.0 (83.2)
Pump Flow (Opt), gpm (Lpm) ...................... 30.9 (117.0)
System Pressure, Bar (psi) ...................... 230 (3335)
Hydraulic Tank Capacity, gal (L) ...................... 10.0 (38.0)
Number of Valves ...................... 3
| Loader Performance |
Rated Operating Capacity, lbs (kg) ...................... 2600 (1180)
Tipping Load, lbs (kg) ...................... 5200 (2360)
Boom Lifting Force, lbs (kg) ...................... 7100 (3220)
Bucket Breakout Force, lbs (kg) ...................... 5845 (2650)
Loader Boom Type ...................... Radial-lift
| Dimensions and Weight |
Wheelbase, in (mm) ...................... 48.9 (1240)
Height (Operator Cab), in (mm) ...................... 84 (2135)
Length (w/o Bucket), in (mm) ...................... 109.5 (2780)
Length (Bucket On Ground), in (mm) ...................... 145 (3685)
Width (w/o Bucket), in (mm) ...................... 66 (1675)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 125 (3175)
Dump Angle At Max Height, deg ...................... 34
Dump Height (Fully Raised), in (mm) ...................... 100 (2540)
Dump Reach At Max Height, in (mm) ...................... 25 (635)
Rollback Angle At Ground Level, deg ...................... 30
Departure Angle, deg ...................... 24
Bucket Width, in (mm) ...................... 72 (1830)
Ground Clearance, in (mm) ...................... 10.5 (265)
Shipping Weight, lbs (kg) ...................... 6610 (3000)
Operating Weight, lbs (kg) ...................... 7425 (3365)
