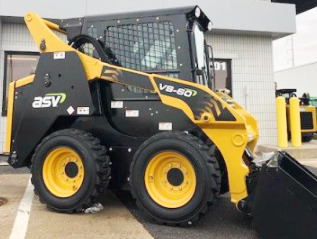

ASV VS-60 Specifications
The
ASV VS-60 skid steer loader driveline system components: a 135 cu.in (2.2L)
Perkins 404D-22T 4-cycle 4-cylinder turbocharged diesel engine with a
rated power of 60 hp (44.7 kW) and 2-speed hydrostatic transmission. The hydraulic
system has a pump with a rated capacity of 17.1 gal/min (65 l/min). The system
relief pressure is 3335 psi (230 bar). The ASV VS60 is equipped with a
vertical-lift loader boom, 80 ANSI continuous roller chains, and 10x16.5 tires.
The skid steer has a maximum lift height of 118" (2995 mm) to hinge pin and
dump height of 87" (2210 mm). The rated operating capacity is 2300 lbs (1043
kg), and tipping load is 4600 lbs (2085 kg).
| Engine Specs |
Engine Model ...................... Perkins 404D-22T
Engine Type ...................... Vertical 4-cycle turbocharged diesel
Number of Cylinders ...................... 4, in-line
Displacement, cu.in (L) ...................... 135 (2.2)
Cylinder Bore, in (mm) ...................... 3.31 (84.0)
Piston Stroke, in (mm) ...................... 3.94 (100.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 60.0 (44.7)
Rated Engine Speed, rpm ...................... 2800
Maximum Torque, Nm (lb-ft) ...................... 190 (140)
Torque Speed, rpm ...................... 1800
Compression Ratio ...................... 23.3:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Indirect injection
Type of Injection ...................... Pintle nozzle
Fuel Injection Pump ...................... Cassette type
Lubricating System ...................... Forced lubrication by gear pump
Cooling System ...................... Engine-driven fan and radiator
Air Cleaner Type ...................... Dual stage
Fuel Tank Capacity, gal (L) ...................... 25.0 (95.0)
Oil Capacity, qts (L) ...................... 11.2 (10.6)
Coolant Capacity, qts (L) ...................... 13.8 (13.0)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 65
| Drive Train |
Drive System Type ...................... Hydrostatic, 4 wheel drive
Number of Gears ...................... 2 (Low/High)
Chain Drive Type ...................... 80 ANSI continuous roller chain
Brakes Type ...................... Independent wet disc
Tire Size ...................... 10x16.5
Forward Speed (Low), mph (kph) ...................... 7.4 (11.9)
Forward Speed (High), mph (kph) ...................... 12.1 (19.3)
Reverse Speed (Low), mph (kph) ...................... 7.4 (11.9)
Reverse Speed (High), mph (kph) ...................... 12.1 (19.3)
| Hydraulic System |
Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Flow, gpm (Lpm) ...................... 17.1 (65.0)
System Pressure, Bar (psi) ...................... 230 (3335)
Hydraulic Tank Capacity, gal (L) ...................... 8.0 (30.5)
Number of Valves ...................... 3
| Loader Performance |
Rated Operating Capacity, lbs (kg) ...................... 2300 (1043)
Tipping Load, lbs (kg) ...................... 4600 (2085)
Boom Lifting Force, lbs (kg) ...................... 4375 (1985)
Bucket Breakout Force, lbs (kg) ...................... 5020 (2275)
Loader Boom Type ...................... Vertical-lift
| Dimensions and Weight |
Wheelbase, in (mm) ...................... 40.6 (1030)
Height (Operator Cab), in (mm) ...................... 77 (1955)
Length (w/o Bucket), in (mm) ...................... 107.2 (2725)
Length (Bucket On Ground), in (mm) ...................... 136.5 (3470)
Width (w/o Bucket), in (mm) ...................... 60 (1525)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 118 (2995)
Dump Angle At Max Height, deg ...................... 47
Dump Height (Fully Raised), in (mm) ...................... 87 (2210)
Dump Reach At Max Height, in (mm) ...................... 30 (760)
Rollback Angle At Ground Level, deg ...................... 30
Departure Angle, deg ...................... 28
Bucket Width, in (mm) ...................... 67 (1700)
Ground Clearance, in (mm) ...................... 10.5 (265)
Shipping Weight, lbs (kg) ...................... 5925 (2690)
Operating Weight, lbs (kg) ...................... 6660 (3020)
