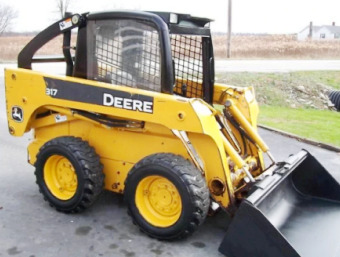

John Deere 317 Specifications
The
John Deere 317 skid steer loader driveline system components: a 149.1 cu.in
(2.4L) JD PowerTech 4024T vertical 4-cylinder turbocharged diesel engine with a
rated power of 57 hp (42.5 kW), and single-speed hydrostatic transmission. The
hydraulic system has a pump with a rated capacity of 17 gal/min (64 l/min). The
system relief pressure is 3450 psi (238 bar). The John Deere 317 is equipped
with vertical-lift loader boom, 80 HD drive chains, and 10x16.5 tires. The skid
steer loader has a boom lifting force of 3100 lbs (1407 kg) and bucket breakout
force of 5500 lbs (2497 kg). The rated operating capacity is 1750 lbs (795 kg),
and tipping load is 3500 lbs (1590 kg).
| Engine Specs |
Engine Model ...................... John Deere PowerTech 4024T
Engine Type ...................... Vertical in-line 4-cycle 4-cylinder turbocharged diesel
Number of Cylinders ...................... Four
Displacement, cu.in (L) ...................... 149.1 (2.44)
Cylinder Bore, in (mm) ...................... 3.39 (86.0)
Piston Stroke, in (mm) ...................... 4.13 (105.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 57.0 (42.5)
Maximum Engine Power, hp (kW) ...................... 61.0 (45.5)
Rated Engine Speed, rpm ...................... 2800
Slow Idle Speed, rpm ...................... 900
Fast Idle Speed, rpm ...................... 3000
Compression Ratio ...................... 18.0:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Injection pump
Air Cleaner Type ...................... Dry dual element
Emission Level ...................... Tier 2
Fuel Tank Capacity, gal (L) ...................... 16.0 (61.0)
Oil Capacity, qts (L) ...................... 9.5 (9.0)
Coolant Capacity, qts (L) ...................... 7.0 (6.6)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 70
| Drive Train |
Drive System Type ...................... 4-wheel drive, hydrostatic transmission
Number of Gears ...................... Single
Chain Drive Type ...................... 80 HD heavy-duty chains, continuous loop
Brakes Type ...................... Integral automatic wet disc
Front Tire Size ...................... 10x16.5
Rear Tire Size ...................... 10x16.5
Axles Type ...................... Induction-hardened
Final Drive ...................... Chains, high strength, adjustment free
Chain Case Capacity (Each), qts (L) ...................... 14.8 (14.0)
Forward Speed (Max), mph (kph) ...................... 6.8 (10.9)
Reverse Speed (Max), mph (kph) ...................... 6.8 (10.9)
| Hydraulic System |
Hydraulic System Type ...................... Open center
Pump Flow (Std), gpm (Lpm) ...................... 17.0 (64.0)
Pump Flow (Opt), gpm (Lpm) ...................... 27.0 (102.0)
System Pressure, Bar (psi) ...................... 238 (3450)
Hydraulic Tank Capacity, gal (L) ...................... 5.0 (19.0)
Number of Valves ...................... 3
| Loader Performance |
Rated Operating Capacity, lbs (kg) ...................... 1750 (795)
Tipping Load, lbs (kg) ...................... 3500 (1590)
Boom Lifting Force, lbs (kg) ...................... 3100 (1407)
Bucket Breakout Force, lbs (kg) ...................... 5500 (2497)
Loader Boom Type ...................... Vertical-lift
| Dimensions and Weight |
Wheelbase, in (mm) ...................... 42.1 (1070)
Height (Operator Cab), in (mm) ...................... 75.6 (1920)
Length (w/o Bucket), in (mm) ...................... 102 (2590)
Length (Bucket On Ground), in (mm) ...................... 126 (3200)
Width (w/o Bucket), in (mm) ...................... 63 (1600)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 114.2 (2900)
Dump Angle At Max Height, deg ...................... 45
Dump Height (Fully Raised), in (mm) ...................... 89 (2260)
Dump Reach At Max Height, in (mm) ...................... 29.1 (740)
Rollback Angle At Ground Level, deg ...................... 35
Departure Angle, deg ...................... 27
Bucket Width, in (mm) ...................... 66 (1675)
Ground Clearance, in (mm) ...................... 8.2 (210)
Turning Radius (w/Bucket), in (mm) ...................... 79 (2000)
Shipping Weight, lbs (kg) ...................... 5730 (2605)
Operating Weight, lbs (kg) ...................... 6300 (2860)
