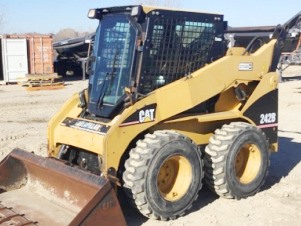

Caterpillar 242B Specifications
The
Cat 242B skid steer loader is powered by 134.1 cu.in (2.2L) Caterpillar 3024CT
4-cycle 4-cylinder turbocharged liquid cooled diesel engine with a rated power
of 57 hp (43 kW) at 2600 rpm. The Cat 242B is equipped with a single-speed or
two-speed hydrostatic transmission, wet multi disc brakes, and 10x16.5 or
12x16.5 tires. The hydraulic system has a pump with fluid flow rate of 15.6 gpm
(60 lpm). The hydraulic pressure is 3335 psi (230 bar). The skid steer loader
has a rated operating capacity of 2000 lbs (907 kg) and tipping load of 4000 lbs
(1815 kg). The boom lifting force is 3840 lbs (1742 kg), and bucket breakout
force is 4060 lbs (1840 kg).
| Engine Specs |
Engine Model ...................... Cat 3024CT
Engine Type ...................... 4-cycle liquid cooled diesel
Number of Cylinders ...................... 4, in-line
Displacement, cu.in (L) ...................... 134.1 (2.19)
Cylinder Bore, in (mm) ...................... 3.31 (84.0)
Piston Stroke, in (mm) ...................... 3.94 (100.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 57.0 (43.0)
Maximum Engine Power, hp (kW) ...................... 62.0 (46.0)
Rated Engine Speed, rpm ...................... 2600
Compression Ratio ...................... 23.3:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Direct Injection
Air Cleaner ...................... Dual element, radial seal
Valve Lash, in (mm) ...................... 0.008 (0.20)
Fuel Tank Capacity, gal (L) ...................... 17.1 (65.0)
Oil Capacity, qts (L) ...................... 8.5 (8.0)
Coolant Capacity, qts (L) ...................... 10.6 (10.0)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 85
| Drive Train |
Drive System Type ...................... Hydrostatic, four wheel chain drive
Number of Gears ...................... Single
Chain Drive Type ...................... 80 HS continuous roller chain
Brakes Type ...................... Wet multi disc
Front Tire Size (Std) ...................... 12x16.5
Rear Tire Size (Std) ...................... 12x16.5
Front Tire Size (Opt) ...................... 10x16.5
Rear Tire Size (Opt) ...................... 10x16.5
Chaincase Capacity, qts (L) ...................... 6.4 (6.0)
Forward Speed, mph (kph) ...................... 7.4 (12.0)
Reverse Speed, mph (kph) ...................... 7.4 (12.0)
| Hydraulic System |
Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Flow (Std), gpm (Lpm) ...................... 15.8 (60.0)
Pump Flow (High), gpm (Lpm) ...................... 26.4 (100.0)
System Pressure, Bar (psi) ...................... 230 (3335)
Hydraulic Reservoir Capacity, gal (L) ...................... 9.2 (35.0)
Hydraulic System Capacity, gal (L) ...................... 14.5 (55.0)
Number of Valves ...................... 3
| Loader Performance |
Rated Operating Capacity, lbs (kg) ...................... 2000 (907)
Tipping Load, lbs (kg) ...................... 4000 (1815)
Boom Lifting Force, lbs (kg) ...................... 3840 (1742)
Bucket Breakout Force, lbs (kg) ...................... 4060 (1840)
| Dimensions and Weight |
Wheelbase, in (mm) ...................... 43.1 (1095)
Height (Operator Cab), in (mm) ...................... 78 (1990)
Height (Boom Raised), in (mm) ...................... 154.5 (3925)
Length (w/o Bucket), in (mm) ...................... 108.7 (2760)
Length (Bucket On Ground), in (mm) ...................... 135.2 (3435)
Width (w/o Bucket), in (mm) ...................... 66 (1675)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 120 (3045)
Height to Hinge Pin (Carry Position), in (mm) ...................... 11.8 (300)
Dump Angle At Max Height, deg ...................... 50
Dump Height (Fully Raised), in (mm) ...................... 88.2 (2240)
Dump Reach At Max Height, in (mm) ...................... 30 (765)
Rollback Angle At Ground Level, deg ...................... 29
Rollback Angle At Max Height, deg ...................... 87
Departure Angle, deg ...................... 28
Bucket Width, in (mm) ...................... 66 (1675)
Ground Clearance, in (mm) ...................... 7 (180)
Turning Radius (w/Bucket), in (mm) ...................... 87.4 (2220)
Operating Weight (Std Flow), lbs (kg) ...................... 6800 (3085)
Operating Weight (High Flow), lbs (kg) ...................... 6895 (3127)
