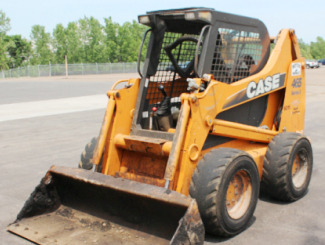

Case 465 Series 3 Specifications
The
Case 465 Series 3 skid steer loader driveline system components: a 274 cu.in
(4.5L) Case 445T/M3 4-cylinder direct injection turbocharged diesel engine
with a rated power of 90 hp (67 kW) and 2-speed hydro transmission. The
hydraulic system has a pump with a rated capacity of 21.9 gal/min (83 l/min).
The system pressure is 3050 psi (210 bar). The Case 465 is equipped with a
vertical-lift boom, 120HS continuous roller chains, and 12x16.5 or 33-15.5x16.5
tires. The skid steer has a boom lifting force of 6500 lbs (2955 kg) and
bucket breakout force of 7400 lbs (3365 kg). The rated operating capacity is
3000 lbs (1360 kg), and tipping load is 6000 lbs (2720 kg).
| Engine Specs |
Engine Model .................. Case 445T/M3
Engine Type .................. 4-Stroke direct injection turbocharged diesel
Number of Cylinders .................. 4
Displacement, cu in (L) .................. 274 (4.50)
Engine Bore, in (mm) .................. 4.1 (104.0)
Engine Stroke, in (mm) .................. 5.2 (132.0)
Aspiration .................. Turbocharged
Rated Engine Power, hp (kW) .................. 90.0 (67.0)
Rated Engine Speed, rpm .................. 2300
Maximum Torque, Nm (ft-lb) .................. 390 (288)
Torque Speed, rpm .................. 1300
High Idle Speed, rpm .................. 2450
Low Idle Speed, rpm .................. 1100
Firing Order .................. 1-3-4-2
Fuel System .................. Injection pump
Fuel Filter Type.................... In-line strainer
Governor Type .................. Mechanical
Lubricating System .................. Positive pressure
Oil Filter Type.................... Full-flow cartridge
Cooling System .................. Pressurized
Water Pump Type .................. Integral
Air Cleaner Type .................. Dry element
Fuel Tank Capacity, gal (L) .................. 20.2 (76.4)
Oil Capacity, qts (L) .................. 12.7 (12.0)
Coolant Capacity, qts (L) .................. 12.0 (11.4)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 95
| Drive Train |
Drive System Type .................. Hydrostatic, 4 wheel drive
Number of Gears .................. 2 (Low/High)
Drive Pump Type .................. Tandem, axial piston
Chain Drive Type .................. ASA 120HS continuous roller chain
Brakes Type .................. Independent wet disc
Final Drive Type .................. Single reduction planetary to chain drive
Tire Size (Std) .................. 12x16.5
Tire Size (Opt) .................. 33-15.5x16.5
Chain Case Oil Capacity (per side), qts (L) .................. 8.0 (7.6)
Forward Speed (Low), mph (kph) .................. 6.2 (10.0)
Forward Speed (High), mph (kph) .................. 11.3 (18.1)
Reverse Speed (Low), mph (kph) .................. 6.2 (10.0)
Reverse Speed (High), mph (kph) .................. 11.3 (18.1)
| Hydraulic System |
Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow (Std), gpm (Lpm) .................. 21.9 (83.0)
Pump Flow (Opt), gpm (Lpm) .................. 41.8 (158.0)
System Pressure, Bar (psi) .................. 210 (3050)
Hydraulic Reservoir Capacity, gal (L) .................. 7.0 (26.5)
Hydraulic System Capacity, gal (L) .................. 17.0 (64.5)
Number of Valves .................. 3
| Loader Performance |
Rated Operating Capacity, lbs (kg) .................. 3000 (1360)
Tipping Load, lbs (kg) .................. 6000 (2720)
Boom Lifting Force, lbs (kg) .................. 6500 (2955)
Bucket Breakout Force, lbs (kg) .................. 7400 (3365)
Loader Boom Type .................. Vertical-lift
| Dimensions and Weight |
Wheelbase, in (mm) .................. 51.4 (1310)
Height (Operator Cab), in (mm) .................. 83.2 (2110)
Height (Boom Raised), in (mm) .................. 163 (4140)
Length (w/o Bucket), in (mm) .................. 112.2 (2850)
Length (Bucket On Ground), in (mm) .................. 143 (3630)
Width (w/o Bucket), in (mm) .................. 58.5 (1490)
Height to Hinge Pin (Fully Raised), in (mm) .................. 125.5 (3190)
Dump Angle At Max Height, deg .................. 42
Dump Height (Fully Raised), in (mm) .................. 94.8 (2410)
Dump Reach At Max Height, in (mm) .................. 40.3 (1020)
Rollback Angle At Ground Level, deg .................. 27
Rollback Angle At Max Height, deg .................. 93
Departure Angle, deg .................. 26
Bucket Width, in (mm) .................. 84 (2130)
Ground Clearance, in (mm) .................. 9.2 (235)
Turning Radius (w/Bucket), in (mm) .................. 88.4 (2240)
Shipping Weight, lbs (kg) .................. 8060 (3545)
Operating Weight, lbs (kg) .................. 8875 (4025)
