Case 40XT Specifications

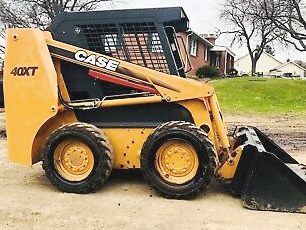

The
Case 40XT skid steer loader is powered by 239 cu.in (3.9L) Case 4-390
four-cylinder direct injection naturally aspirated diesel engine with a rated
power of 60 hp (44.7 kW) at 2200 rpm. The Case 40XT is equipped with a
single-speed hydrostatic transmission, single-reduction chain drive, and 10x16.5 or 13x16.5
tires. The open center hydraulic system has a gear pump with fluid flow rate of
19.1 gpm (72.2 lpm). The hydraulic pressure is 3000 psi (207 bar). The skid
steer loader has a rated operating capacity of 1500 lbs (680 kg) and tipping
load of 3000 lbs (1360 kg). The boom lifting force is 3788 lbs (1720 kg), and
bucket breakout force is 3974 lbs (1800 kg).
| Engine Specs |
Engine Model .................. Case 4-390
Engine Type .................. 4-Stroke direct injection liquid-cooled diesel
Number of Cylinders .................. 4
Displacement, cu in (L) .................. 239 (3.90)
Engine Bore, in (mm) .................. 4.02 (102.0)
Engine Stroke, in (mm) .................. 4.72 (120.0)
Aspiration .................. Naturally aspirated
Rated Engine Power, hp (kW) .................. 60.0 (44.7)
Rated Engine Speed, rpm .................. 2200
Maximum Torque, Nm (ft-lb) .................. 240 (177)
Torque Speed, rpm.................. 1200
Compression Ratio .................. 17.0:1
Firing Order .................. 1-3-4-2
Fuel System .................. Injection pump
Governor Type .................. Mechanical flyweight
Lubricating System .................. Positive pressure
Cooling System .................. Pressurized
Air Cleaner Type .................. Dry type
Fuel Tank Capacity, gal (L) .................. 22.0 (83.3)
Oil Capacity, qts (L) .................. 11.0 (10.4)
Coolant Capacity, qts (L) .................. 17.5 (16.5)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 65
| Drive Train |
Drive System Type .................. Hydrostatic, 4 wheel drive
Number of Gears .................. Single
Drive Pump Type .................. Tandem, axial piston
Chain Drive Type .................. ASA 80HS continuous roller chain
Brakes Type .................. Independent wet disc
Final Drive Type .................. Single-reduction chain drive
Tire Size (Std) .................. 10x16.5
Tire Size (Opt) .................. 13x16.5
Chain Case Oil Capacity (per side), qts (L) .................. 6.0 (5.7)
Forward Speed (Max), mph (kph) .................. 6.8 (11.0)
Reverse Speed (Max), mph (kph) .................. 6.8 (11.0)
| Hydraulic System |
Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow, gpm (Lpm) .................. 19.1 (72.2)
System Pressure, Bar (psi) .................. 207 (3000)
Hydraulic Reservoir Capacity, gal (L) .................. 7.1 (27.0)
Hydraulic System Capacity, gal (L) .................. 13.3 (50.2)
Number of Valves .................. 2
| Loader Performance |
Rated Operating Capacity, lbs (kg) .................. 1500 (680)
Tipping Load, lbs (kg) .................. 3000 (1360)
Boom Lifting Force, lbs (kg) .................. 3788 (1720)
Bucket Breakout Force, lbs (kg) .................. 3974 (1800)
Loader Boom Type .................. Radial-lift
| Dimensions and Weight |
Wheelbase, in (mm) .................. 41.2 (1050)
Height (Operator Cab), in (mm) .................. 75.5 (1920)
Height (Boom Raised), in (mm) .................. 145.3 (3690)
Length (w/o Bucket), in (mm) .................. 100 (2540)
Length (Bucket On Ground), in (mm) .................. 123.2 (3130)
Width (w/o Bucket), in (mm) .................. 49 (1250)
Height to Hinge Pin (Fully Raised), in (mm) .................. 114.6 (2910)
Dump Angle At Max Height, deg .................. 40
Dump Height (Fully Raised), in (mm) .................. 89.4 (2270)
Dump Reach At Max Height, in (mm) .................. 23.6 (600)
Rollback Angle At Ground Level, deg .................. 32
Rollback Angle At Max Height, deg .................. 80
Departure Angle, deg .................. 27
Bucket Width, in (mm) .................. 60 (1525)
Ground Clearance, in (mm) .................. 8 (205)
Turning Radius (w/Bucket), in (mm) .................. 73.2 (1860)
Shipping Weight, lbs (kg) .................. 5150 (2340)
Operating Weight, lbs (kg) .................. 5700 (2590)
