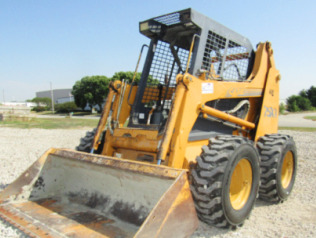

Case 75XT Specifications
The
Case 75XT skid steer loader driveline system components: a 239 cu.in (3.9L) Case
4-390 four-cylinder direct injection liquid-cooled diesel engine with a rated
power of 75 hp (55.9 kW) and single hydrostatic transmission. The hydraulic
system has a pump with a rated capacity of 21 gal/min (79.4 l/min). The system
relief pressure is 3000 psi (207 bar). The Case 75XT is equipped with a single
reduction final drive, 100HS continuous roller chain, and 10x16.5 tires. The
skid steer loader has a maximum lift height of 119.7" (3040 mm) to hinge pin and
dump height of 90.6" (2300 mm). The rated operating capacity is 2200 lbs (998
kg), and tipping load is 4400 lbs (1996 kg).
| Engine Specs |
Engine Model .................. Case 4-390
Engine Type .................. 4-Stroke direct injection liquid-cooled diesel
Number of Cylinders .................. 4
Displacement, cu in (L) .................. 239 (3.90)
Engine Bore, in (mm) .................. 4.02 (102.0)
Engine Stroke, in (mm) .................. 4.72 (120.0)
Aspiration .................. Naturally aspirated
Rated Engine Power, hp (kW) .................. 75.0 (55.9)
Rated Engine Speed, rpm .................. 2200
Maximum Torque, Nm (ft-lb) .................. 262 (193)
Torque Speed, rpm.................. 1200
Compression Ratio .................. 17.0:1
Firing Order .................. 1-3-4-2
Fuel System .................. Injection pump
Governor Type .................. Mechanical flyweight
Lubricating System .................. Positive pressure
Cooling System .................. Pressurized
Air Cleaner Type .................. Dry type
Fuel Tank Capacity, gal (L) .................. 17.3 (65.5)
Oil Capacity, qts (L) .................. 11.0 (10.4)
Coolant Capacity, qts (L) .................. 17.0 (16.0)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 65
| Drive Train |
Drive System Type .................. Hydrostatic, 4 wheel drive
Number of Gears .................. Single
Drive Pump Type .................. Tandem, axial piston
Chain Drive Type .................. ASA 100HS continuous roller chain
Brakes Type .................. Independent wet disc
Final Drive Type .................. Single-reduction chain drive
Tire Size (Std) .................. 10x16.5
Tire Size (Opt) .................. 12x16.5
Chain Case Oil Capacity (per side), qts (L) .................. 5.0 (4.7)
Forward Speed (Max), mph (kph) .................. 7.2 (11.6)
Reverse Speed (Max), mph (kph) .................. 7.2 (11.6)
| Hydraulic System |
Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow, gpm (Lpm) .................. 21.0 (79.4)
System Pressure, Bar (psi) .................. 207 (3000)
Hydraulic Reservoir Capacity, gal (L) .................. 5.7 (21.7)
Hydraulic System Capacity, gal (L) .................. 16.5 (62.4)
Number of Valves .................. 3
| Loader Performance |
Rated Operating Capacity, lbs (kg) .................. 2200 (998)
Tipping Load, lbs (kg) .................. 4400 (1996)
Boom Lifting Force, lbs (kg) .................. 5173 (2350)
Bucket Breakout Force, lbs (kg) .................. 5370 (2440)
Loader Boom Type .................. Vertical-lift
| Dimensions and Weight |
Wheelbase, in (mm) .................. 44.9 (1140)
Height (Operator Cab), in (mm) .................. 79.9 (2030)
Height (Boom Raised), in (mm) .................. 152.8 (3880)
Length (w/o Bucket), in (mm) .................. 103.1 2620)
Length (Bucket On Ground), in (mm) .................. 131.5 (3340)
Width (w/o Bucket), in (mm) .................. 60.9 (1550)
Height to Hinge Pin (Fully Raised), in (mm) .................. 119.7 (3040)
Dump Angle At Max Height, deg .................. 45
Dump Height (Fully Raised), in (mm) .................. 90.6 (2300)
Dump Reach At Max Height, in (mm) .................. 29.9 (760)
Rollback Angle At Ground Level, deg .................. 27
Rollback Angle At Max Height, deg .................. 89
Departure Angle, deg .................. 25
Bucket Width, in (mm) .................. 73 (1850)
Ground Clearance, in (mm) .................. 8.9 (225)
Turning Radius (w/Bucket), in (mm) .................. 80.2 (2030)
Shipping Weight, lbs (kg) .................. 6100 (2770)
Operating Weight, lbs (kg) .................. 6700 (3040)
