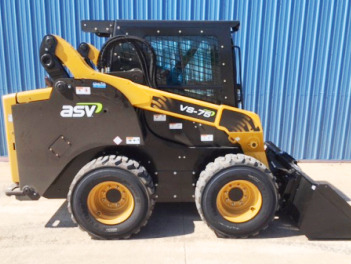

ASV VS-75 Specifications
The
ASV VS-75 skid steer loader is powered by 177 cu.in (2.9L) Deutz TD2.9L4
vertical four-cylinder turbocharged diesel engine with a rated
power of 74 hp (55 kW) at 2800 rpm. The ASV VS-75 is equipped with a two-speed
hydrostatic transmission, 100 ANSI continuous roller chains, and 12x16.5
standard tires. The hydraulic system has a gear pump with fluid flow rate of 26
gpm (98.4 lpm) or 30.9 gpm (117 lpm). The hydraulic pressure is 3335 psi (230
bar). The skid steer loader has a rated operating capacity of 3500 lbs (1587 kg)
and tipping load of 7000 lbs (3175 kg). The boom lifting force is 6325 lbs (2828
kg), and bucket breakout force is 5920 lbs (2685 kg).
| Engine Specs |
Engine Model ...................... Deutz TD2.9L4
Engine Type ...................... Vertical 4-cycle turbocharged diesel
Number of Cylinders ...................... 4, in-line
Displacement, cu.in (L) ...................... 177 (2.9)
Cylinder Bore, in (mm) ...................... 3.61 (92.0)
Piston Stroke, in (mm) ...................... 4.33 (110.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 74.0 (55.0)
Rated Engine Speed, rpm ...................... 2800
Maximum Torque, Nm (lb-ft) ...................... 260 (192)
Torque Speed, rpm ...................... 1800
Firing Order ...................... 1-3-4-2
Fuel System ...................... Common rail
Lubricating System ...................... Forced lubrication by gear pump
Cooling System ...................... Engine-driven fan and radiator
Air Cleaner Type ...................... Dual stage
Fuel Tank Capacity, gal (L) ...................... 28.0 (106.0)
Oil Capacity, qts (L) ...................... 9.0 (8.5)
Coolant Capacity, qts (L) ...................... 20.2 (19.0)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 95
| Drive Train |
Drive System Type ...................... Hydrostatic, 4 wheel drive
Number of Gears ...................... 2 (Low/High)
Chain Drive Type ...................... 100 ANSI continuous roller chain
Brakes Type ...................... Independent wet disc
Tire Size ...................... 12x16.5
Forward Speed (Low), mph (kph) ...................... 8.2 (13.1)
Forward Speed (High), mph (kph) ...................... 11.0 (17.7)
Reverse Speed (Low), mph (kph) ...................... 8.2 (13.1)
Reverse Speed (High), mph (kph) ...................... 11.0 (17.7)
| Hydraulic System |
Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Flow (Std), gpm (Lpm) ...................... 26.0 (98.4)
Pump Flow (Opt), gpm (Lpm) ...................... 30.9 (117.0)
System Pressure, Bar (psi) ...................... 230 (3335)
Hydraulic Tank Capacity, gal (L) ...................... 10.0 (38.0)
Number of Valves ...................... 3
| Loader Performance |
Rated Operating Capacity, lbs (kg) ...................... 3500 (1587)
Tipping Load, lbs (kg) ...................... 7000 (3175)
Boom Lifting Force, lbs (kg) ...................... 6325 (2828)
Bucket Breakout Force, lbs (kg) ...................... 5920 (2685)
Loader Boom Type ...................... Vertical-lift
| Dimensions and Weight |
Wheelbase, in (mm) ...................... 49 (1240)
Height (Operator Cab), in (mm) ...................... 84 (2135)
Length (w/o Bucket), in (mm) ...................... 108.8 (2765)
Length (Bucket On Ground), in (mm) ...................... 146 (3710)
Width (w/o Bucket), in (mm) ...................... 66 (1675)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 130 (3300)
Dump Angle At Max Height, deg ...................... 39
Dump Height (Fully Raised), in (mm) ...................... 103 (2615)
Dump Reach At Max Height, in (mm) ...................... 36 (915)
Rollback Angle At Ground Level, deg ...................... 30
Departure Angle, deg ...................... 24
Bucket Width, in (mm) ...................... 72 (1830)
Ground Clearance, in (mm) ...................... 10.5 (265)
Shipping Weight, lbs (kg) ...................... 7925 (3595)
Operating Weight, lbs (kg) ...................... 8740 (3965)
