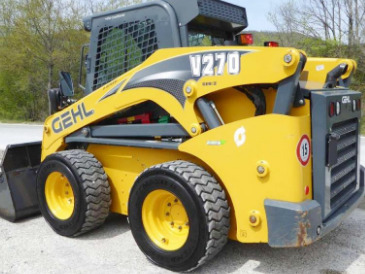

Gehl V270 Specifications
The
Gehl V270 skid steer loader driveline system components: a 202.5 cu.in (3.3L)
Yanmar 4TNV98CT four-cylinder turbocharged diesel engine with a rated power of
72 hp (53.7 kW), and one-speed or two-speed hydrostatic transmission. The
hydraulic system has a pump with a rated capacity of 23.5 gal/min (89.6 l/min).
The system relief pressure is 3300 psi (228 bar). The Gehl V270 is equipped with
a vertical-lift loader boom, 100H roller chains, and 12x16.5 tires. The skid
steer has a maximum lift height of 130.3" (3310 mm) to hinge pin and dump
height of 100" (2540 mm). The rated operating capacity is 2700 lbs (1225 kg),
and tipping load is 5400 lbs (2550 kg).
| Engine Specs |
Engine Model ...................... Yanmar 4TNV98CT
Engine Type ...................... 4-cylinder vertical in-line liquid-cooled diesel
Number of Cylinders ...................... Four
Displacement, cu.in (L) ...................... 202.5 (3.32)
Cylinder Bore, in (mm) ...................... 3.86 (98.0)
Piston Stroke, in (mm) ...................... 4.33 (110.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 72.0 (53.7)
Rated Engine Speed, rpm ...................... 2500
High Idle Speed, rpm ...................... 2750
Maximum Torque, Nm (lb-ft) ...................... 294 (217)
Torque Speed, rpm ...................... 1625
Compression Ratio ...................... 18.5:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Direct injection
Fuel Filter Type ...................... Replaceable element
Lubrication System ...................... Forced with trochoid pump
Cooling System ...................... Liquid-cooled with radiator
Air Cleaner Type ...................... Dry dual element
Emission Level ...................... Final Tier 4
Fuel Tank Capacity, gal (L) ...................... 18.0 (68.1)
Engine Oil Capacity, qts (L) ...................... 10.8 (10.2)
Cooling System Capacity, qts (L) ...................... 13.7 (13.0)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 95
| Drive Train |
Drive System Type ...................... Servo-controlled hydrostatic drive
Number of Gears (Std) ...................... Single
Number of Gears (Opt) ...................... Two (low-high)
Chain Drive Type ...................... 100H roller chain
Front Tire Size ...................... 12x16.5
Rear Tire Size ...................... 12x16.5
Chaincase Capacity, qts (L) ...................... 10.1 (9.5)
Maximum Speed (Single Range), mph (km/h) ...................... 7.4 (11.8)
Maximum Speed (Low Range), mph (km/h) ...................... 7.4 (11.8)
Maximum Speed (High Range), mph (km/h) ...................... 11.9 (19.1)
| Hydraulic System |
Hydraulic System Type ...................... Open center
Pump Capacity (Standard), gpm (Lpm) ...................... 23.5 (89.6)
Pump Capacity (High Flow), gpm (Lpm) ...................... 35.0 (132.6)
System Pressure, Bar (psi) ...................... 228 (3300)
Hydraulic Reservoir Capacity, gal (L) ...................... 10.5 (39.8)
Number of Valves ...................... 3
| Loader Performance |
Rated Operating Capacity, lbs (kg) ...................... 2700 (1225)
Tipping Load, lbs (kg) ...................... 5400 (2550)
Loader Boom Type .................... Vertical-lift
| Dimensions and Weight |
Wheelbase (Nominal), in (mm) ...................... 49.5 (1255)
Height (Operator Cab), in (mm) ...................... 81 (2055)
Height (Boom Raised), in (mm) ...................... 167.4 (4250)
Length (w/o Bucket), in (mm) ...................... 116.5 (2960)
Length (Bucket On Ground), in (mm) ...................... 148 (3760)
Width (w/o Bucket), in (mm) ...................... 69.5 (1765)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 130.3 (3310)
Dump Angle At Max Height, deg ...................... 42
Dump Height (Fully Raised), in (mm) ...................... 100 (2540)
Dump Reach At Max Height, in (mm) ...................... 32 (815)
Rollback Angle At Ground Level, deg ...................... 29
Rollback Angle At Max Height, deg ...................... 94
Departure Angle, deg ...................... 25
Bucket Width, in (mm) ...................... 70 (1780)
Ground Clearance, in (mm) ...................... 8 (203)
Turning Radius (w/Bucket), in (mm) ...................... 90 (2285)
Operating Weight, lbs (kg) ...................... 8150 (3700)
