Gehl 3825 Maintenance
The

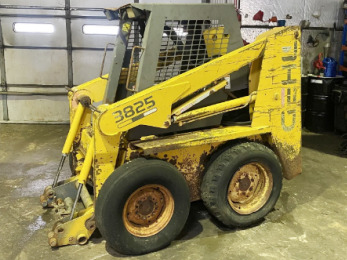

Gehl 3825 skid steer loader driveline system components: a 81.5 cu.in (1.3L)
Kubota V1305 four-cylinder indirect injection diesel engine with a rated power
of 29.3 hp (22 kW), and single-speed hydrostatic transmission. The hydraulic
system has a pump with a rated capacity of 10 gal/min (38 l/min). The system
relief pressure is 3000 psi (207 bar). The Gehl 3825 is equipped with a
radial-lift loader boom, 60HE roller chains, and 10.5x15 or 27-8.5x15 tires. The
skid steer loader has a maximum lift height of 107.5" (2730 mm) to hinge pin and
dump height of 86.3" (2190 mm). The rated operating capacity is 1000 lbs (455
kg), and tipping load is 2000 lbs (910 kg).
| Refill Capacities |
Fuel Tank Capacity, gal (L) ...................... 8.5 (32.0)
Engine Oil Capacity, gal (L) ...................... 1.6 (6.0)
Engine Coolant Capacity, gal (L) ...................... 2.0 (7.6)
Hydraulic Reservoir Fluid Capacity, gal (L) ...................... 8.0 (30.3)
Chain Case Oil Capacity, gal (L) ...................... 1.0 (3.8)
| Recommended Oil and Fluid |
Engine Oil Type ...................... SAE 10W, SAE 10W-30, SAE 20. API Service Category CD-4 or higher
Engine Coolant Type ...................... 50/50 Antifreeze/Coolant
Hydraulic Fluid Type ...................... Amoco Rycon 46, Mobil DTE 15M or equivalent
Chain Case Oil Type ...................... Mobil DTE 15M or SAE 10W30
| Service Intervals |
Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Hydraulic Fluid Level ...................... Every 50 Hours
Check Chain Case Oil Level ...................... Every 100 Hours
Check Alternator Belt ...................... Every 100 Hours
Check Drive Chain Tension ...................... Every 100 Hours
Check Battery Condition...................... Every 100 Hours
Change Engine Oil ...................... Every 100 Hours
Replace Engine Oil Filter ...................... Every 100 Hours
Replace Hydraulic Oil Filter ...................... Every 200 Hours
Adjust Parking Brake ...................... Every 200 Hours
Check Radiator Hoses and Clamps ...................... Every 200 Hours
Replace Fuel Filter ...................... Every 500 Hours
Replace Primary Engine Air Filter ...................... Every 500 Hours
Replace Secondary Engine Air Filter ...................... Every 500 Hours
Change Hydraulic Fluid ...................... Every 500 Hours
Change Chain Case Oil ...................... Every 500 Hours
Change Engine Coolant ...................... Every 500 Hours
| Replacement Parts |
Engine Oil Filter. Part Number ...................... 121443 (Element)
Engine Fuel Filter. Part Number ...................... 114868 (Cartridge)
Primary Engine Air Filter. Part Number ...................... 092397 (Element)
Secondary Engine Air Filter. Part Number ...................... 092398 (Element)
Hydraulic Oil Filter. Part Number ...................... 115259 (Element)
Alternator Belt. Part Number ...................... 121435
