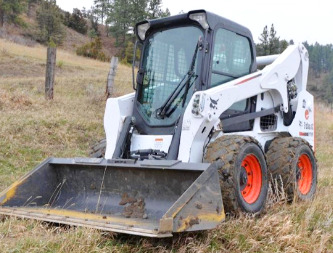

Bobcat S750 Specifications
The
Bobcat S750 skid steer loader is powered by Kubota V3800 diesel engine with a
rated power of 85 hp (63 kW) or Bobcat Doosan D34 diesel engine with a rated
power of 85 hp (63 kW). The Bobcat S750 is equipped with one-speed or two-speed
hydrostatic transmission, vertical-lift loader boom, 120 HSOC roller chains, and
12x16.5 or 33-15.5x16.5 tires. The hydraulic system has a pump with fluid flow
rate of 23 gpm (87.1 lpm). The hydraulic pressure is 3500 psi (241 bar). The
skid steer loader has a rated operating capacity of 3200 lbs (1452 kg) and
tipping load of 6400 lbs (2905 kg). The lift height is 132" (3355 mm) to hinge
pin, and dump height is 104.3" (2650 mm).
| Kubota Engine Specs |
Engine Model ...................... Kubota V3800-DI-T-E3
Engine Type ...................... Vertical 4-cylinder liquid-cooled diesel
Number of Cylinders ...................... Four
Displacement, cu.in (L) ...................... 230 (3.77)
Cylinder Bore, in (mm) ...................... 3.94 (100.0)
Piston Stroke, in (mm) ...................... 4.72 (120.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 85.0 (63.0)
Rated Engine Speed, rpm ...................... 2400
Low Idle Speed, rpm ...................... 1250-1400
High Idle Speed, rpm ...................... 2525-2650
Maximum Torque, Nm (lb-ft) ...................... 290 (215)
Torque Speed, rpm ...................... 1600
Compression Ratio ...................... 19:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Direct injection
Lubricating System ...................... Pressure lubrication by gear pump
Cooling system ...................... Forced circulation with water pump
Air Cleaner Type ...................... Cartridge, dry element
Fuel Tank Capacity, gal (L) ...................... 29.5 (111.6)
Oil Capacity, qts (L) ...................... 12.0 (11.4)
Coolant Capacity, qts (L) ...................... 15.3 (14.4)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 90
| Bobcat Doosan Engine Specs |
Engine Model ...................... Bobcat Doosan D34
Engine Type ...................... Vertical in-line four-cylinder direct injection liquid-cooled diesel
Number of Cylinders ...................... 4
Displacement, cu.in (L) ...................... 208.1 (3.41)
Cylinder Bore, in (mm) ...................... 3.86 (98.0)
Piston Stroke, in (mm) ...................... 4.45 (113.0)
Aspiration ...................... Turbocharged
Rated Engine Power, hp (kW) ...................... 85.0 (63.0)
Rated Engine Speed, rpm ...................... 2400
Low Idle Speed, rpm ...................... 1050
High Idle Speed, rpm ...................... 2500
Maximum Torque, Nm (lb-ft) ...................... 324 (240)
Torque Speed, rpm ...................... 1400
Compression Ratio ...................... 17:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... High-pressure common rail
Fuel Filter Type ...................... Full flow, cartridge
Lubricating System ...................... Pressure lubrication by gear pump
Oil Filter Type ...................... Full flow, cartridge
Engine Control ...................... Full electronic engine management
Fuel Tank Capacity, gal (L) ...................... 27.2 (103.1)
Oil Capacity, qts (L) ...................... 13.3 (12.6)
Coolant Capacity, qts (L) ...................... 14.5 (13.7)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 120
| Drive Train |
Drive System Type ...................... Hydrostatic transmission, 4-wheel drive
Number of Gears (Std) ...................... Single
Number of Gears (Opt) ...................... Two (low-high)
Drive Pump Type ...................... Tandem, hydrostatic piston
Chain Drive Type ...................... 120 HSOC continuous roller chain
Brakes Type ...................... Independent wet disc
Tire Size (Std) ...................... 12x16.5
Tire Size (Opt) ...................... 33-15.5x16.5
Chaincase Capacity, qts (L) ...................... 44.3 (41.8)
Travel Speed (Single), mph (km/h) ...................... 7.1 (11.4)
Travel Speed (Low Range), mph (km/h) ...................... 7.1 (11.4)
Travel Speed (High Range), mph (km/h) ...................... 12.3 (19.8)
| Hydraulic System |
Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Capacity (Standard), gpm (Lpm) ...................... 23.0 (87.1)
Pump Capacity (High Flow), gpm (Lpm) ...................... 36.5 (138.5)
System Pressure, Bar (psi) ...................... 241 (3500)
Number of Valves ...................... 3
Hydraulic Cylinders ...................... Double-acting
Hydraulic Reservoir Capacity, gal (L) ...................... 2.5 (9.5)
Hydraulic System Capacity, gal (L) ...................... 9.5 (36.0)
| Loader Performance |
Rated Operating Capacity, lbs (kg) ...................... 3200 (1452)
Tipping Load, lbs (kg) ...................... 6400 (2905)
Boom Lifting Force, lbs (kg) ...................... 6597 (3000)
Bucket Breakout Force, lbs (kg) ...................... 6730 (3060)
Loader Boom Type ...................... Vertical-lift
| Dimensions and Weight |
Wheelbase, in (mm) ...................... 48.3 (1225)
Height (Operator Cab), in (mm) ...................... 81.3 (2065)
Height (Boom Raised), in (mm) ...................... 166.5 (4230)
Length (w/o Bucket), in (mm) ...................... 114.3 (2905)
Length (Bucket On Ground), in (mm) ...................... 141.6 (3595)
Width (w/o Bucket), in (mm) ...................... 72.1 (1830)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 132 (3355)
Dump Angle At Max Height, deg ...................... 42
Dump Height (Fully Raised), in (mm) ...................... 104.3 (2650)
Dump Reach At Max Height, in (mm) ...................... 31.5 (800)
Rollback Angle At Ground Level, deg ...................... 32
Rollback Angle At Max Height, deg ...................... 98
Departure Angle, deg ...................... 25
Bucket Width, in (mm) ...................... 74 (1880)
Ground Clearance, in (mm) ...................... 8.1 (207)
Turning Radius (w/Bucket), in (mm) ...................... 85.8 (2180)
Shipping Weight, lbs (kg) ...................... 8230 (3740)
Operating Weight, lbs (kg) ...................... 8895 (4045)
