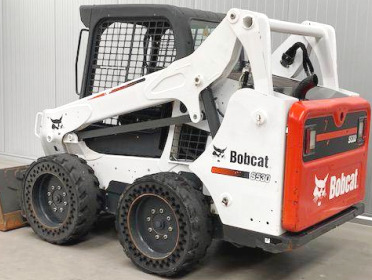

Bobcat S530 Specifications
The
Bobcat S530 skid steer loader is powered by Kubota V2203 diesel engine with a
rated power of 49 hp (36.5 kW) or Kubota V2403 diesel engine with a rated power
of 49 hp (36.5 kW). The Bobcat S530 is equipped with a single-speed or two-speed
hydrostatic transmission, vertical-lift loader boom, 80 HSOC roller chains, and 10x16.5
tires. The hydraulic system has a pump with fluid flow rate of 17.1 gpm (64.7
lpm). The hydraulic pressure is 3550 psi (245 bar). The skid steer loader has a
rated operating capacity of 1850 lbs (840 kg) and tipping load of 3700 lbs (1678
kg). The boom lifting force is 3953 lbs (1793 kg), and bucket breakout force is
3856 lbs (1749 kg).
| Kubota V2203 Engine Specs |
Engine Model ...................... Kubota V2203 M-DI-E2B
Engine Type ...................... Vertical water-cooled 4-cylinder diesel
Number of Cylinders ...................... Four
Displacement, cu.in (L) ...................... 134.1 (2.2)
Cylinder Bore, in (mm) ...................... 3.43 (87.0)
Piston Stroke, in (mm) ...................... 3.64 (92.4)
Aspiration ...................... Naturally aspirated
Rated Engine Power, hp (kW) ...................... 49.0 (36.5)
Rated Engine Speed, rpm ...................... 2800
Maximum Torque, Nm (lb-ft) ...................... 150 (112)
Torque Speed, rpm ...................... 1700
Idle Speed, rpm ...................... 1075-3000
Compression Ratio ...................... 22.6:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Direct injection
Lubricating System ...................... Pressure lubrication with filter
Combustion Chamber ...................... Spherical type (E-TVCS)
Fuel Tank Capacity, gal (L) ...................... 24.7 (93.7)
Oil Capacity, qts (L) ...................... 9.2 (8.7)
Coolant Capacity, qts (L) ...................... 12.0 (11.3)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 90
| Kubota V2403 Engine Specs |
Engine Model ...................... Kubota V2403-M-DI-E3B
Engine Type ...................... 4-cycle vertical direct injection diesel
Number of Cylinders ...................... 4
Total Displacement, cu in (L) ...................... 148.5 (2.43)
Cylinder Bore, in (mm) ...................... 3.43 (87.0)
Piston Stroke, in (mm) ...................... 4.03 (102.4)
Aspiration ...................... Naturally aspirated
Rated Engine Power, hp (kW) ...................... 49.0 (36.5)
Rated Engine Speed, rpm ...................... 2700
Low Idle Speed, rpm ...................... 1075-1225
High Idle Speed, rpm ...................... 2760-2900
Maximum Torque, Nm (lb-ft) ...................... 159 (117)
Torque Speed, rpm ...................... 1600
Compression Ratio ...................... 23.8:1
Firing Order ...................... 1-3-4-2
Fuel System ...................... Common rail direct injection
Fuel System Control ...................... Electronic
Lubricating system ...................... Forced lubrication by pump
Cooling system ...................... Forced circulation with water pump
Emission Level ...................... Tier 4 Final
Fuel Tank Capacity, gal (L) ...................... 24.7 (93.7)
Oil Capacity, qts (L) ...................... 9.2 (8.7)
Coolant Capacity, qts (L) ...................... 12.0 (11.3)
Electrical System Rating, Volts ...................... 12
Charging System ...................... Alternator
Alternator Rating, Amps ...................... 90
| Drive Train |
Drive System Type ...................... Hydrostatic transmission, 4-wheel drive
Number of Gears (Std) ...................... Single
Number of Gears (Opt) ...................... Two (low-high)
Drive Pump Type ...................... Tandem, hydrostatic piston
Chain Drive Type ...................... 80 HSOC continuous roller chain
Brakes Type ...................... Independent wet disc
Tire Size (Std) ...................... 10x16.5
Tire Size (Opt) ...................... 31-12x16.5
Chaincase Capacity, qts (L) ...................... 34.1 (32.2)
Travel Speed (Single), mph (km/h) ...................... 7.4 (11.8)
Travel Speed (Low Range), mph (km/h) ...................... 7.4 (11.8)
Travel Speed (High Range), mph (km/h) ...................... 11.0 (17.6)
| Hydraulic System |
Hydraulic System Type ...................... Open center
Hydraulic Pump Type ...................... Gear
Pump Capacity (Standard), gpm (Lpm) ...................... 17.1 (64.7)
Pump Capacity (High Flow), gpm (Lpm) ...................... 26.7 (101.1)
System Pressure, Bar (psi) ...................... 245 (3550)
Number of Valves ...................... 3
Hydraulic Cylinders ...................... Double-acting
Lift Cylinder Rod Diameter, in (mm) ...................... 1.63 (41.4)
Lift Cylinder Piston Diameter, in (mm) ...................... 2.75 (69.8)
Lift Cylinder Piston Stroke, in (mm) ...................... 21.3 (540)
Bucket Cylinder Rod Diameter, in (mm) ...................... 1.5 (38.1)
Bucket Cylinder Piston Diameter, in (mm) ...................... 2.75 (69.8)
Bucket Cylinder Piston Stroke, in (mm) ...................... 13.1 (330)
Hydraulic Reservoir Capacity, gal (L) ...................... 2.0 (7.6)
Hydraulic System Capacity, gal (L) ...................... 9.5 (36.0)
| Loader Performance |
Rated Operating Capacity, lbs (kg) ...................... 1850 (840)
Tipping Load, lbs (kg) ...................... 3700 (1678)
Boom Lifting Force, lbs (kg) ...................... 3953 (1793)
Bucket Breakout Force, lbs (kg) ...................... 3856 (1749)
Loader Boom Type ...................... Vertical-lift
| Dimensions and Weight |
Wheelbase, in (mm) ...................... 42.6 (1080)
Height (Operator Cab), in (mm) ...................... 77.8 (1970)
Height (Boom Raised), in (mm) ...................... 153.6 (3900)
Length (w/o Bucket), in (mm) ...................... 104.6 (2655)
Length (Bucket On Ground), in (mm) ...................... 133 (3380)
Width (w/o Bucket), in (mm) ...................... 64.7 (1645)
Height to Hinge Pin (Fully Raised), in (mm) ...................... 119 (3025)
Dump Angle At Max Height, deg ...................... 42
Dump Height (Fully Raised), in (mm) ...................... 91.3 (2320)
Dump Reach At Max Height, in (mm) ...................... 32.6 (830)
Rollback Angle At Ground Level, deg ...................... 30
Rollback Angle At Max Height, deg ...................... 97
Departure Angle, deg ...................... 24
Bucket Width, in (mm) ...................... 68 (1725)
Ground Clearance, in (mm) ...................... 7.3 (185)
Turning Radius (w/Bucket), in (mm) ...................... 79.7 (2025)
Shipping Weight, lbs (kg) ...................... 5445 (2475)
Operating Weight, lbs (kg) ...................... 6205 (2815)
