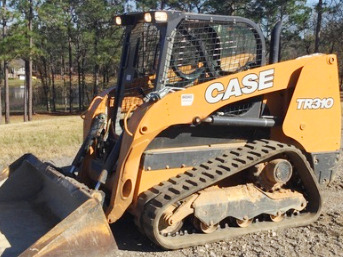

Case TR310 Specifications
The
Case TR310 compact track loader is powered by 207 cu.in (3.4L) FPT F5H FL463
vertical 4-cylinder turbocharged aftercooled diesel engine with a rated power of
74 hp (55 kW). The Case TR310 is equipped with a hydrostatic transmission,
planetary gearbox with 2-speed motor, radial-lift boom, and 15.7" (400 mm)
rubber tracks with steel inserts. The hydraulic system has a pump with fluid
flow rate of 24.2 gpm (91.5 lpm). The hydraulic pressure is 3050 psi (210 bar).
The track loader has a rated operating capacity of 2170 lbs (984 kg) and tipping
load of 6200 lbs (2812 kg). The boom lifting force is 6440 lbs (2925 kg), and
bucket breakout force is 8680 lbs (3945 kg).
| Engine Specs |
Engine Model .................. FPT F5H FL463
Engine Type .................. 4-cycle liquid-cooled diesel
Number of Cylinders .................. 4
Displacement, cu.in (L) .................. 207 (3.39)
Cylinder Bore, in (mm) .................. 3.89 (99.0)
Piston Stroke, in (mm) .................. 4.33 (110.0)
Aspiration .................. Turbocharged aftercooled
Rated Engine Power, hp (kW) .................. 74.0 (55.0)
Rated Engine Speed, rpm .................. 2500
Maximum Torque, Nm (lb-ft) .................. 314 (232)
Torque Speed, rpm .................. 1400
Fast Idle Speed, rpm .................. 2475-2525
Low Idle Speed, rpm .................. 1125-1175
Compression Ratio .................. 17:1
Firing Order .................. 1-3-4-2
Fuel System .................. Direct injection
Fuel Injection .................. High pressure common rail
Cooling System .................. Liquid
Water Pump Type .................. Centrifugal
Oil Pump Type .................. Rotor
Emission Level .................. Tier 4 interim, stage 4B
Fuel Tank Capacity, gal (L) .................. 19.5 (73.8)
Oil Capacity, qts (L) .................. 9.0 (8.5)
Coolant Capacity, qts (L) .................. 20.1 (19.0)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 120
| Drive Train |
Drive System Type .................. Hydrostatic, 4-wheel drive
Number of Gears .................. 2 (low/high)
Final Drive Type .................. Planetary gearbox with 2-speed motor
Brakes Type .................. Hydraulic wet disc
Forward Speed (Low), mph (kph) .................. 5.1 (8.2)
Forward Speed (High), mph (kph) .................. 7.6 (12.2)
Reverse Speed (Low), mph (kph) .................. 5.1 (8.2)
Reverse Speed (High), mph (kph) ..................7.6 (12.2)
| Undercarriage |
Tracks Type .................. Rubber with steel inserts
Track Adjustments .................. Hydraulic
Track Width, in (mm) .................. 15.7 (400)
Ground Pressure, psi (Bar) .................. 5.0 (0.345)
Track Rollers (per side) .................. 3, triple flange
| Hydraulic System |
Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow (Standard), gpm (Lpm) .................. 24.2 (91.5)
Pump Flow (High Flow), gpm (Lpm) .................. 32.4 (122.5)
System Pressure, Bar (psi) .................. 210 (3050)
Hydraulic Reservoir Capacity, gal (L) .................. 5.3 (20.0)
Hydraulic System Capacity, gal (L) .................. 10.0 (38.0)
Number of Valves .................. 3
| Loader Performance |
Rated Operating Capacity (35% tipping load), lbs (kg) .................. 2170 (984)
Rated Operating Capacity (50% tipping load), lbs (kg) .................. 3100 (1406)
Tipping Load, lbs (kg) .................. 6200 (2812)
Boom Lifting Force, lbs (kg) .................. 6440 (2925)
Bucket Breakout Force, lbs (kg) .................. 8680 (3945)
Loader Boom Type .................. Radial-lift
| Dimensions and Weight |
Length (Track On Ground), in (mm) .................. 55.9 (1420)
Length (w/o Bucket), in (mm) .................. 105.1 (2670)
Length (Bucket On Ground), in (mm) .................. 129.6 (3290)
Width (w/o Bucket), in (mm) .................. 53.4 (1360)
Height (Operator Cab), in (mm) .................. 78.7 (2000)
Height (Boom Raised), in (mm) .................. 154.3 (3920)
Height to Hinge Pin (Fully Raised), in (mm) .................. 123 (3120)
Dump Angle At Max Height, deg .................. 39.6
Dump Height (Fully Raised), in (mm) .................. 98.2 (2500)
Dump Reach At Max Height, in (mm) .................. 25.4 (650)
Rollback Angle At Max Height, deg .................. 31
Rollback Angle At Ground Level, deg .................. 98.6
Departure Angle, deg .................. 32
Bucket Width, in (mm) .................. 72 (1830)
Ground Clearance, in (mm) .................. 8 (200)
Shipping Weight, lbs (kg) .................. 8580 (3890)
Operating Weight, lbs (kg) .................. 8880 (4025)
