Case 450CT Specifications
The

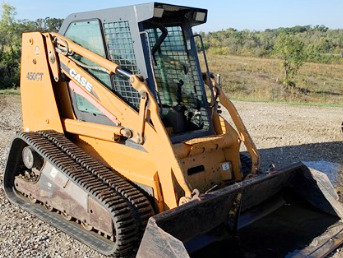

Case 450CT compact track loader is powered by 274 cu.in (4.5L) Case 445T/M2
four-cylinder direct injection turbocharged diesel engine with a rated
power of 89 hp (66 kW). The Case 450CT is equipped with a two-speed hydrostatic
transmission, planetary single reduction, 17.7" (450 mm) rubber tracks with
steel inserts, and radial-lift loader boom. The hydraulic system has a pump with
fluid flow rate of 21.9 gpm (83 lpm). The hydraulic pressure is 3050 psi (210
bar). The track loader has a rated operating capacity of 2700 lbs (1225 kg) and
tipping load of 7716 lbs (3500 kg). The lift height is 124.5" (3160 mm) to hinge
pin, and dump height is 94.5" (2400 mm).
| Engine Specs |
Engine Model .................. Case 445T/M2
Engine Type .................. 4-Stroke direct injection turbocharged diesel
Number of Cylinders .................. 4
Displacement, cu in (L) .................. 274 (4.50)
Engine Bore, in (mm) .................. 4.1 (104.0)
Engine Stroke, in (mm) .................. 5.2 (132.0)
Aspiration .................. Turbocharged
Rated Engine Power, hp (kW) .................. 89.0 (66.0)
Rated Engine Speed, rpm .................. 2300
Maximum Torque, Nm (ft-lb) .................. 357 (263)
Torque Speed, rpm .................. 1400
High Idle Speed, rpm .................. 2450
Low Idle Speed, rpm .................. 1100
Firing Order .................. 1-3-4-2
Fuel System .................. Injection pump
Fuel Filter Type.................... In-line strainer
Governor Type .................. Mechanical
Lubricating System .................. Positive pressure
Oil Filter Type.................... Full-flow cartridge
Cooling System .................. Pressurized
Water Pump Type .................. Integral
Air Cleaner Type .................. Dry element
Fuel Tank Capacity, gal (L) .................. 20.7 (78.3)
Oil Capacity, qts (L) .................. 12.7 (12.0)
Coolant Capacity, qts (L) .................. 18.0 (17.0)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 95
| Drive Train |
Drive System Type .................. Hydrostatic direct drive
Number of Gears .................. 2 (low/high)
Drive Pump Type .................. Tandem, axial-piston
Drive Motor Type .................. Fixed displacement, radial piston
Final Drive Type .................. Single reduction planetary
Brakes Type .................. Hydraulic wet disc
Forward Speed (Low), mph (kph) .................. 5.1 (8.2)
Forward Speed (High), mph (kph) .................. 8.0 (12.8)
Reverse Speed (Low), mph (kph) .................. 5.1 (8.2)
Reverse Speed (High), mph (kph) ..................8.0 (12.8)
| Undercarriage |
Tracks Type .................. Rubber with steel inserts
Track Adjustments .................. Hydraulic
Track Width (Std), in (mm) .................. 17.7 (450)
Track Width (Opt), in (mm) .................. 15.7 (400)
Ground Pressure (Std Track), psi (Bar) .................. 4.8 (0.311)
Ground Pressure (Opt Track), psi (Bar) .................. 5.4 (0.372)
Track Rollers (per side) .................. 4, triple flange
Front Idler Diameter, in (mm) .................. 13.7 (350)
Rear Idler Diameter, in (mm) .................. 11.4 (290)
Sprocket Teeth Number .................. 17
| Hydraulic System |
Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow (Standard), gpm (Lpm) .................. 21.9 (83.0)
Pump Flow (High Flow), gpm (Lpm) .................. 41.8 (158.0)
System Pressure, Bar (psi) .................. 210 (3050)
Hydraulic Reservoir Capacity, gal (L) .................. 6.5 (24.5)
Hydraulic System Capacity, gal (L) .................. 17.0 (64.3)
Number of Valves .................. 3
| Loader Performance |
Rated Operating Capacity (35% tipping load), lbs (kg) .................. 2700 (1225)
Rated Operating Capacity (50% tipping load), lbs (kg) .................. 3858 (1750)
Tipping Load, lbs (kg) .................. 7716 (3500)
Boom Lifting Force, lbs (kg) .................. 5290 (2405)
Bucket Breakout Force, lbs (kg) .................. 6200 (2820)
Loader Boom Type .................. Radial-lift
| Dimensions and Weight |
Length (Track On Ground), in (mm) .................. 64.7 (1645)
Length (w/o Bucket), in (mm) .................. 108.7 (2770)
Length (Bucket On Ground), in (mm) .................. 140.8 (3590)
Width (w/o Bucket), in (mm) .................. 65.4 (1660)
Height (Operator Cab), in (mm) .................. 80 (2030)
Height (Boom Raised), in (mm) .................. 150.3 (3820)
Height to Hinge Pin (Fully Raised), in (mm) .................. 124.5 (3160)
Dump Angle At Max Height, deg .................. 40
Dump Height (Fully Raised), in (mm) .................. 94.5 (2400)
Dump Reach At Max Height, in (mm) .................. 30.7 (780)
Rollback Angle At Max Height, deg .................. 30
Rollback Angle At Ground Level, deg .................. 55
Departure Angle, deg .................. 39
Bucket Width, in (mm) .................. 84 (2130)
Ground Clearance, in (mm) .................. 9 (230)
Shipping Weight, lbs (kg) .................. 10100 (4580)
Operating Weight, lbs (kg) .................. 10915 (4950)
