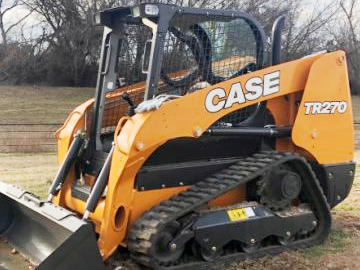

Case TR270 Specifications
The
Case TR270 compact track loader driveline system components: a 207 cu.in (3.4L)
FPT F5H FL463 4-cylinder turbocharged diesel engine with a rated power of 74 hp
(55 kW) and hydrostatic transmission. The hydraulic system has a pump
with a rated flow of 24.2 gpm (91.5 lpm). The system pressure is 3050 psi (210
bar). The Case TR270 is equipped with a planetary gearbox with 2-speed motor,
12.6" (320 mm) rubber tracks with steel inserts, and radial-lift loader boom.
The loader has a boom lift force of 6260 lbs (2845 kg) and bucket breakout force
of 7270 lbs (3305 kg). The rated operating capacity is 1890 lbs (860 kg), and
tipping load is 5400 lbs (2450 kg).
| Engine Specs |
Engine Model .................. FPT F5H FL463
Engine Type .................. 4-cycle liquid-cooled diesel
Number of Cylinders .................. 4
Displacement, cu.in (L) .................. 207 (3.39)
Cylinder Bore, in (mm) .................. 3.89 (99.0)
Piston Stroke, in (mm) .................. 4.33 (110.0)
Aspiration .................. Turbocharged aftercooled
Rated Engine Power, hp (kW) .................. 74.0 (55.0)
Rated Engine Speed, rpm .................. 2500
Maximum Torque, Nm (lb-ft) .................. 314 (232)
Torque Speed, rpm .................. 1400
Fast Idle Speed, rpm .................. 2475-2525
Low Idle Speed, rpm .................. 1125-1175
Compression Ratio .................. 17:1
Firing Order .................. 1-3-4-2
Fuel System .................. Direct injection
Fuel Injection .................. High pressure common rail
Cooling System .................. Liquid
Water Pump Type .................. Centrifugal
Oil Pump Type .................. Rotor
Emission Level .................. Tier 4 interim, stage 4B
Fuel Tank Capacity, gal (L) .................. 19.5 (73.8)
Oil Capacity, qts (L) .................. 10.0 (9.4)
Coolant Capacity, qts (L) .................. 20.1 (19.0)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 120
| Drive Train |
Drive System Type .................. Hydrostatic, 4-wheel drive
Number of Gears .................. 2 (low/high)
Final Drive Type .................. Planetary gearbox with 2-speed motor
Brakes Type .................. Hydraulic wet disc
Forward Speed (Low), mph (kph) .................. 5.1 (8.2)
Forward Speed (High), mph (kph) .................. 8.0 (12.8)
Reverse Speed (Low), mph (kph) .................. 5.1 (8.2)
Reverse Speed (High), mph (kph) ..................8.0 (12.8)
| Undercarriage |
Tracks Type .................. Rubber with steel inserts
Track Adjustments .................. Hydraulic
Track Width, in (mm) .................. 12.6 (320)
Ground Pressure, psi (Bar) .................. 5.9 (0.405)
Track Rollers (per side) .................. 3, triple flange
| Hydraulic System |
Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow (Standard), gpm (Lpm) .................. 24.2 (91.5)
Pump Flow (High Flow), gpm (Lpm) .................. 32.4 (122.5)
System Pressure, Bar (psi) .................. 210 (3050)
Hydraulic Reservoir Capacity, gal (L) .................. 7.0 (26.5)
Hydraulic System Capacity, gal (L) .................. 8.5 (32.2)
Number of Valves .................. 3
| Loader Performance |
Rated Operating Capacity (35% tipping load), lbs (kg) .................. 1890 (860)
Rated Operating Capacity (50% tipping load), lbs (kg) .................. 2700 (1225)
Tipping Load, lbs (kg) .................. 5400 (2450)
Boom Lifting Force, lbs (kg) .................. 6260 (2845)
Bucket Breakout Force, lbs (kg) .................. 7270 (3305)
Loader Boom Type .................. Radial-lift
| Dimensions and Weight |
Length (Track On Ground), in (mm) .................. 55.9 (1420)
Length (w/o Bucket), in (mm) .................. 105.1 (2670)
Length (Bucket On Ground), in (mm) .................. 129.6 (3290)
Width (w/o Bucket), in (mm) .................. 53.4 (1360)
Height (Operator Cab), in (mm) .................. 78.7 (2000)
Height (Boom Raised), in (mm) .................. 154.3 (3920)
Height to Hinge Pin (Fully Raised), in (mm) .................. 123 (3120)
Dump Angle At Max Height, deg .................. 39.6
Dump Height (Fully Raised), in (mm) .................. 98.2 (2500)
Dump Reach At Max Height, in (mm) .................. 25.4 (650)
Rollback Angle At Max Height, deg .................. 31
Rollback Angle At Ground Level, deg .................. 98.6
Departure Angle, deg .................. 32
Bucket Width, in (mm) .................. 72 (1830)
Ground Clearance, in (mm) .................. 8 (200)
Shipping Weight, lbs (kg) .................. 7970 (3615)
Operating Weight, lbs (kg) .................. 8270 (3750)
