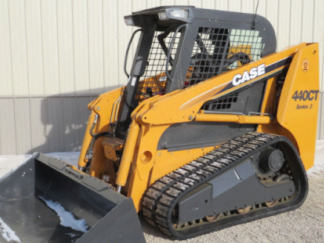

Case 440CT Series 3 Specifications
The
Case 440CT Series 3 compact track loader driveline system components: a 274
cu.in (4.5L) Case 445T/M3 4-cylinder turbocharged diesel engine with a rated
power of 90 hp (674 kW) and 2-speed hydro transmission. The hydraulic system has
a pump with a rated flow of 21.9 gpm (83 lpm). The system pressure is 3050 psi
(210 bar). The Case 440CT is equipped with a radial piston drive motors, single
planetary reduction, and 15.7" (400 mm) rubber tracks with steel inserts. The
loader has a max lift height of 121.5" (3090 mm) to hinge pin and dump height of
96.6" (2450 mm). The rated operating capacity is 2100 lbs (952 kg), and tipping
load is 6000 lbs (2720 kg).
| Engine Specs |
Engine Model .................. Case 445T/M3
Engine Type .................. 4-Stroke direct injection turbocharged diesel
Number of Cylinders .................. 4
Displacement, cu in (L) .................. 274 (4.50)
Engine Bore, in (mm) .................. 4.1 (104.0)
Engine Stroke, in (mm) .................. 5.2 (132.0)
Aspiration .................. Turbocharged
Rated Engine Power, hp (kW) .................. 90.0 (67.0)
Rated Engine Speed, rpm .................. 2300
Maximum Torque, Nm (ft-lb) .................. 390 (288)
Torque Speed, rpm .................. 1400
High Idle Speed, rpm .................. 2450
Low Idle Speed, rpm .................. 1100
Firing Order .................. 1-3-4-2
Fuel System .................. Injection pump
Fuel Filter Type.................... In-line strainer
Governor Type .................. Mechanical
Lubricating System .................. Positive pressure
Oil Filter Type.................... Full-flow cartridge
Cooling System .................. Pressurized
Water Pump Type .................. Integral
Air Cleaner Type .................. Dry element
Fuel Tank Capacity, gal (L) .................. 22.0 (83.3)
Oil Capacity, qts (L) .................. 12.7 (12.0)
Coolant Capacity, qts (L) .................. 12.0 (11.4)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 95
| Drive Train |
Drive System Type .................. Hydrostatic direct drive
Number of Gears .................. 2 (low/high)
Drive Pump Type .................. Tandem, axial-piston
Drive Motor Type .................. Fixed displacement, radial piston
Final Drive Type .................. Single reduction planetary
Brakes Type .................. Hydraulic wet disc
Forward Speed (Low), mph (kph) .................. 5.1 (8.2)
Forward Speed (High), mph (kph) .................. 7.6 (12.2)
Reverse Speed (Low), mph (kph) .................. 5.1 (8.2)
Reverse Speed (High), mph (kph) .................. 7.6 (12.2)
| Undercarriage |
Tracks Type .................. Rubber with steel inserts
Track Adjustments .................. Hydraulic
Track Width, in (mm) .................. 15.7 (400)
Ground Pressure, psi (Bar) .................. 5.1 (0.345)
Track Rollers (per side) .................. 3, triple flange
Front Idler Diameter, in (mm) .................. 13.7 (350)
Rear Idler Diameter, in (mm) .................. 11.4 (290)
Sprocket Teeth Number .................. 17
| Hydraulic System |
Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow (Standard), gpm (Lpm) .................. 21.9 (83.0)
Pump Flow (High Flow), gpm (Lpm) .................. 37.6 (143.0)
System Pressure, Bar (psi) .................. 210 (3050)
Hydraulic Reservoir Capacity, gal (L) .................. 7.1 (27.0)
Hydraulic System Capacity, gal (L) .................. 13.2 (50.2)
Number of Valves .................. 3
| Loader Performance |
Rated Operating Capacity (35% tipping load), lbs (kg) .................. 2100 (952)
Rated Operating Capacity (50% tipping load), lbs (kg) .................. 3000 (1360)
Tipping Load, lbs (kg) .................. 6000 (2720)
Boom Lifting Force, lbs (kg) .................. 4575 (2080)
Bucket Breakout Force, lbs (kg) .................. 6207 (2820)
Loader Boom Type .................. Radial-lift
| Dimensions and Weight |
Length (Track On Ground), in (mm) .................. 56.5 (1440)
Length (w/o Bucket), in (mm) .................. 103.9 (2640)
Length (Bucket On Ground), in (mm) .................. 127.2 (3230)
Width (w/o Bucket), in (mm) .................. 55.2 (1400)
Height (Operator Cab), in (mm) .................. 80.7 (2050)
Height (Boom Raised), in (mm) .................. 152.4 (3870)
Height to Hinge Pin (Fully Raised), in (mm) .................. 121.5 (3090)
Dump Angle At Max Height, deg .................. 39
Dump Height (Fully Raised), in (mm) .................. 96.6 (2450)
Dump Reach At Max Height, in (mm) .................. 23.4 (590)
Rollback Angle At Max Height, deg .................. 32
Rollback Angle At Ground Level, deg .................. 84
Departure Angle, deg .................. 34
Bucket Width, in (mm) .................. 72 (1830)
Ground Clearance, in (mm) .................. 9 (230)
Shipping Weight, lbs (kg) .................. 8315 (3770)
Operating Weight, lbs (kg) .................. 8915 lb (4045)
