ASV RT-50 Maintenance
The

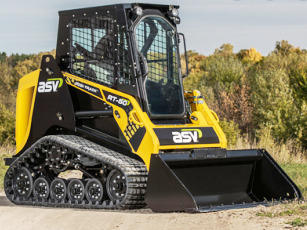

ASV RT50 compact track loader driveline system components: a 135 cu.in (2.2L)
Perkins 404D-22 4-cycle 4-cylinder indirect injection liquid cooled diesel
engine with a rated power of 50 hp (37.3 kW) and single-speed hydro
transmission. The hydraulic system has a pump with a rated flow of 16.3 gpm
(61.7 lpm). The system pressure is 3000 psi (207 bar). The ASV RT-50 is equipped
with a radial-lift boom, 15" (380 mm) rubber tracks with embedded co-polymer
cords, and elevated track drive sprockets. The loader has a maximum lift height
of 115.5" (2920 mm) to hinge pin. The rated operating capacity is 1600 lbs (725
kg), and tipping load is 4570 lbs (2070 kg).
| Refill Capacities |
Engine Oil Capacity, gal (L) ...................... 2.8 (10.6)
Engine Coolant Capacity, gal (L) ...................... 2.0 (7.5)
Hydraulic Tank Fluid Capacity, gal (L) ...................... 8.0 (30.5)
Fuel Tank Capacity, gal (L) ...................... 13.7 (52.0)
| Recommended Oil and Fluid |
Engine Oil Type ...................... Multi-Grade 10W-30, 15W-40. API Service Category CH-4
Engine Coolant Type ...................... Ethylene Glycol (long life)
Hydraulic Fluid Type ...................... All Season MV
Undercarriage Grease ...................... Undercarriage Wheel Bearing Lube
| Service Intervals |
Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Hydraulic Fluid Level ...................... Every 50 Hours
Check Tracks Tension ...................... Every 50 Hours
Check Drive Sprocket Rollers ...................... Every 50 Hours
Check Battery Connections ...................... Every 100 Hours
Clean Primary Air Filter ...................... Every 200 Hours
Check Fan Belt Tension ...................... Every 250 Hours
Change Engine Oil ...................... Every 250 Hours
Replace Engine Oil Filter ...................... Every 250 Hours
Replace Hydraulic Filter Element ...................... Every 250 Hours
Replace Fuel Filter Element ...................... Every 500 Hours
Replace Primary Air Filter ...................... Every 1000 Hours
Replace Secondary Air Filter ...................... Every 1000 Hours
Change Hydraulic System Fluid ...................... Every 1000 Hours
Change Engine Coolant ...................... Every 1000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number ...................... 0200-377
Engine Fuel Filter. Part Number ...................... 0200-213
Primary Engine Air Filter. Part Number ...................... 0200-339
Secondary Engine Air Filter. Part Number ...................... 0200-340
Hydraulic Oil Filter. Part Number ...................... 0200-204
Fan Drive Belt. Part Number ...................... 2030-632
