John Deere 329D Maintenance
The

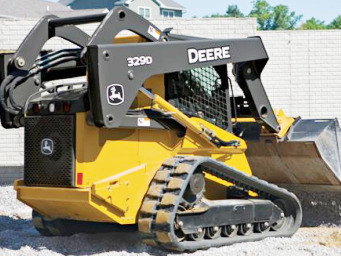

John Deere 329D compact track loader is powered by 186 cu.in (3L) JD PowerTech E
5030HT 5-cylinder turbocharged diesel engine with a rated power of 80 hp (59.6
kW) at 2200 rpm. The John Deere 329D is equipped with one-speed or two-speed
transmission, vertical-lift loader boom, and 15.8" (400 mm) or 17.7" (450 mm)
rubber tracks with steel inserts. The hydraulic system has a pump with fluid
flow rate of 21 gpm (80 lpm). The hydraulic pressure is 3450 psi (238 bar). The
track loader has a rated operating capacity of 2900 lbs (1317 kg) and tipping
load of 8300 lbs (3770 kg). The lift height is 126" (3200 mm) to hinge
pin, and dump height is 102" (2590 mm).
| Refill Capacities |
Engine Oil Capacity, gal (L) ...................... 3.2 (12.3)
Engine Coolant Capacity, gal (L) ...................... 2.6 (10.0)
Hydraulic Fluid Capacity, gal (L) ...................... 8.7 (33.1)
Planetary Gearbox Oil Capacity, qts (L) ...................... 0.53 (0.50)
| Recommended Oil and Fluid |
Engine Oil Type ...................... Plus 50, SAE 10W-30, SAE 10W-40, SAE 15W-40. API Service CJ-4, CK-4
Engine Coolant Type ...................... John Deere Cool-Gard II or Cool-Gard II PG
Hydraulic Fluid Type ...................... John Deere Plus-50, Hydrau, Hydrau XR, Hydrau-Gard
Planetary Gearbox Oil Type ...................... John Deere GL-5, SAE 80W-90, 85W-140
| Service Intervals |
Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Track Tension ...................... Every 50 Hours
Clean Primary Air Filter ...................... Every 250 Hours
Clean Fuel Filter ...................... Every 250 Hours
Change Engine Oil ...................... Every 500 Hours
Replace Engine Oil Filter ...................... Every 500 Hours
Replace Primary Fuel Filter ...................... Every 500 Hours
Replace Final Fuel Filter ...................... Every 500 Hours
Replace Primary Engine Air Filter ...................... Every 500 Hours
Replace Hydraulic Oil Reservoir Breather ...................... Every 500 Hours
Replace Hydraulic Oil Filter ...................... Every 500 Hours
Change Planetary Gearbox Oil ...................... Every 500 Hours
Check Engine Coolant ...................... Every 1000 Hours
Replace Secondary Engine Air Filter ...................... Every 1000 Hours
Change Hydraulic Fluid ...................... Every 1000 Hours
Change Hydraulic Reservoir Oil ...................... Every 1000 Hours
Service And Refill Cooling System ...................... Every 3000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number ...................... RE519626
In-Line Fuel Filter. Part Number ...................... T257865
Fuel Water Separator. Part Number ...................... RE533026 (Element)
Primary Engine Air Filter. Part Number ...................... AT332908
Secondary Engine Air Filter. Part Number ...................... AT332909
Hydraulic Oil Reservoir Breather. Part Number ...................... AT101565
Hydraulic Oil Filter. Part Number ...................... AT314164 (Element)
