John Deere 323E Maintenance
The

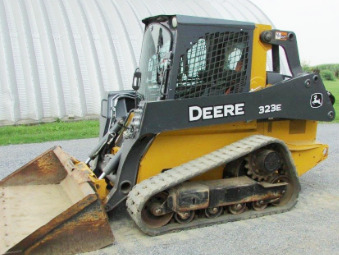

John Deere 323E compact track loader is powered by 202.5 cu.in (3.3L) Yanmar
4TNV98CT 4-cylinder turbo diesel engine with a rated power of 70 hp (52.5
kW). The John Deere 323E is equipped with a single-speed or two-speed
transmission, vertical-lift loader boom, wet-disc brakes, and 12.6" (320 mm) or
15.8" (400 mm) rubber tracks with steel inserts. The hydraulic system has a pump
with fluid flow rate of 18 gpm (68 lpm). The hydraulic pressure is 3250 psi (224
bar). The track loader has a rated operating capacity of 2590 lbs (1176 kg) and
tipping load of 7200 lbs (3268 kg). The boom lifting force is 4300 lbs (1952
kg), and bucket breakout force is 7000 lbs (3178 kg).
| Refill Capacities |
Engine Oil Capacity, gal (L) ...................... 2.7 (10.2)
Engine Coolant Capacity, gal (L) ...................... 3.4 (13.0)
Hydraulic Fluid Capacity, gal (L) ...................... 6.6 (25.0)
Planetary Gearbox Oil Capacity, qts (L) ...................... 0.85 (0.80)
| Recommended Oil and Fluid |
Engine Oil Type ...................... Plus 50, SAE 10W-30, SAE 10W-40, SAE 15W-40. API Service CJ-4, CK-4
Engine Coolant Type ...................... John Deere Cool-Gard II or Cool-Gard II PG
Hydraulic Fluid Type ...................... John Deere Plus-50, Hydrau, Hydrau XR, Hydrau-Gard
Planetary Gearbox Oil Type ...................... John Deere GL-5, SAE 80W-90, 85W-140
| Service Intervals |
Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Track Tension ...................... Every 50 Hours
Clean Primary Air Filter ...................... Every 250 Hours
Clean Fuel Filter ...................... Every 250 Hours
Change Engine Oil ...................... Every 500 Hours
Replace Engine Oil Filter ...................... Every 500 Hours
Replace Primary Fuel Filter ...................... Every 500 Hours
Replace Final Fuel Filter ...................... Every 500 Hours
Replace Primary Engine Air Filter ...................... Every 500 Hours
Replace Hydraulic Oil Filter ...................... Every 500 Hours
Change Planetary Gearbox Oil ...................... Every 500 Hours
Check Engine Coolant ...................... Every 1000 Hours
Replace Hydraulic Oil Reservoir Breather ...................... Every 1000 Hours
Replace Secondary Engine Air Filter ...................... Every 1000 Hours
Change Hydraulic Fluid ...................... Every 1000 Hours
Change Hydraulic Reservoir Oil ...................... Every 1000 Hours
Service And Refill Cooling System ...................... Every 3000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number ...................... MIU800650
Primary Fuel Filter. Part Number ...................... MIU802154
Fuel Water Separator. Part Number ...................... MIU802421
Primary Engine Air Filter. Part Number ...................... AT338105
Secondary Engine Air Filter. Part Number ...................... AT336803
Hydraulic Oil Reservoir Breather. Part Number ...................... AT101565
Transmission Oil Filter. Part Number ...................... AT435649 (Element)
