John Deere 323D Maintenance
The

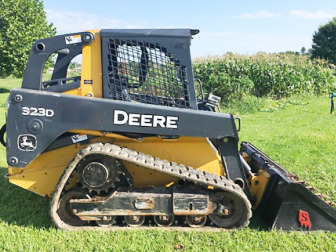

John Deere 323D compact track loader is powered by 149.1 cu.in (2.4L) JD
PowerTech E 4024HT 4-cylinder turbocharged diesel engine with a rated power of
69 hp (51.4 kW) at 2300 rpm. The John Deere 323D is equipped with 1-speed or
2-speed transmission, vertical-lift loader boom, and 12.6" (320 mm) or 15.8"
(400 mm) rubber tracks with steel inserts. The hydraulic system has a pump with
fluid flow rate of 19 gpm (72 lpm). The hydraulic pressure is 3450 psi (238
bar). The track loader has a rated operating capacity of 2295 lbs (1042 kg) and
tipping load of 7200 lbs (3268 kg). The boom lifting force is 3700 lbs (1680
kg), and bucket breakout force is 5600 lbs (2542 kg).
| Refill Capacities |
Engine Oil Capacity, gal (L) ...................... 2.0 (9.0)
Engine Coolant Capacity, gal (L) ...................... 3.2 (9.3)
Hydraulic Fluid Capacity, gal (L) ...................... 5.0 (19.0)
Planetary Gearbox Oil Capacity, qts (L) ...................... 0.53 (0.50)
| Recommended Oil and Fluid |
Engine Oil Type ...................... Plus 50, SAE 10W-30, SAE 10W-40, SAE 15W-40. API Service CJ-4, CK-4
Engine Coolant Type ...................... John Deere Cool-Gard II or Cool-Gard II PG
Hydraulic Fluid Type ...................... John Deere Plus-50, Hydrau, Hydrau XR, Hydrau-Gard
Planetary Gearbox Oil Type ...................... John Deere GL-5, SAE 80W-90, 85W-140
| Service Intervals |
Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Track Tension ...................... Every 50 Hours
Clean Primary Air Filter ...................... Every 250 Hours
Clean Fuel Filter ...................... Every 250 Hours
Change Engine Oil ...................... Every 500 Hours
Replace Engine Oil Filter ...................... Every 500 Hours
Replace Primary Fuel Filter ...................... Every 500 Hours
Replace Final Fuel Filter ...................... Every 500 Hours
Replace Primary Engine Air Filter ...................... Every 500 Hours
Replace Hydraulic Oil Reservoir Breather ...................... Every 500 Hours
Replace Hydraulic Oil Filter ...................... Every 500 Hours
Change Planetary Gearbox Oil ...................... Every 500 Hours
Check Engine Coolant ...................... Every 1000 Hours
Replace Secondary Engine Air Filter ...................... Every 1000 Hours
Change Hydraulic Fluid ...................... Every 1000 Hours
Change Hydraulic Reservoir Oil ...................... Every 1000 Hours
Service And Refill Cooling System ...................... Every 3000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number ...................... RE519626
In-Line Fuel Filter. Part Number ...................... T257865
Fuel Water Separator. Part Number ...................... RE533026
Primary Engine Air Filter. Part Number ...................... AT396133
Secondary Engine Air Filter. Part Number ...................... RE282287
Hydraulic Oil Reservoir Breather. Part Number ...................... AT101565
Hydraulic Oil Filter. Part Number ...................... AT314164
