John Deere 319E Maintenance
The

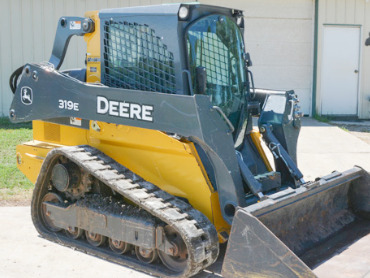

John Deere 319E compact track loader driveline system components: a 202.5 cu.in
(3.3L) Yanmar 4TNV98C 4-cylinder liquid-cooled diesel engine with a
rated power of 66 hp (49.4 kW), and 1-speed hydrostatic transmission. The
hydraulic system has a pump with a rated flow of 15 gpm (57 lpm). The system
pressure is 3250 psi (224 bar). The John Deere 319E is equipped with
vertical-lift loader boom, wet-disc brakes, and 12.6" (320 mm) rubber tracks
with steel inserts. The loader has a maximum lift height of 122.8" (3120 mm) to
hinge pin and dump height of 98.5" (2500 mm). The rated operating capacity is
2150 lbs (976 kg), and tipping load is 6140 lbs (2788 kg).
| Refill Capacities |
Engine Oil Capacity, gal (L) ...................... 2.7 (10.2)
Engine Coolant Capacity, gal (L) ...................... 3.4 (13.0)
Hydraulic Fluid Capacity, gal (L) ...................... 6.6 (25.0)
Planetary Gearbox Oil Capacity, qts (L) ...................... 0.85 (0.80)
| Recommended Oil and Fluid |
Engine Oil Type ...................... Plus 50, SAE 10W-30, SAE 10W-40, SAE 15W-40. API Service CJ-4, CK-4
Engine Coolant Type ...................... John Deere Cool-Gard II or Cool-Gard II PG
Hydraulic Fluid Type ...................... John Deere Plus-50, Hydrau, Hydrau XR, Hydrau-Gard
Planetary Gearbox Oil Type ...................... John Deere GL-5, SAE 80W-90, 85W-140
| Service Intervals |
Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Track Tension ...................... Every 50 Hours
Clean Primary Air Filter ...................... Every 250 Hours
Clean Fuel Filter ...................... Every 250 Hours
Change Engine Oil ...................... Every 500 Hours
Replace Engine Oil Filter ...................... Every 500 Hours
Replace Primary Fuel Filter ...................... Every 500 Hours
Replace Final Fuel Filter ...................... Every 500 Hours
Replace Primary Engine Air Filter ...................... Every 500 Hours
Replace Hydraulic Oil Filter ...................... Every 500 Hours
Change Planetary Gearbox Oil ...................... Every 500 Hours
Check Engine Coolant ...................... Every 1000 Hours
Replace Hydraulic Oil Reservoir Breather ...................... Every 1000 Hours
Replace Secondary Engine Air Filter ...................... Every 1000 Hours
Change Hydraulic Fluid ...................... Every 1000 Hours
Change Hydraulic Reservoir Oil ...................... Every 1000 Hours
Service And Refill Cooling System ...................... Every 3000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number ...................... MIU800650
Primary Fuel Filter. Part Number ...................... MIU802154
Fuel Water Separator. Part Number ...................... MIU802421
Primary Engine Air Filter. Part Number ...................... AT338105
Secondary Engine Air Filter. Part Number ...................... AT336803
Hydraulic Oil Reservoir Breather. Part Number ...................... AT101565
Hydraulic Oil Filter. Part Number ...................... AT435649 (Element)
