Caterpillar 289D Maintenance
The

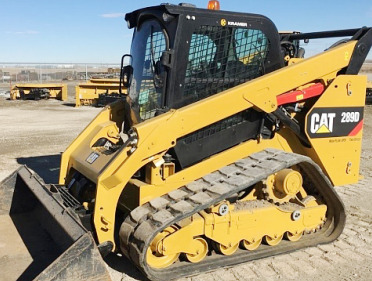

Caterpillar 289D compact track loader is powered by 203.1 cu.in (3.3L) Cat C3.3B
DIT 4-cylinder turbo diesel engine with a rated power of 71.8 hp (53.6 kW). The
Caterpillar 289D is equipped with a two-speed hydro transmission, vertical-lift loader
boom, and 15.7" (400 mm) or 17.7" (400 mm) rubber
tracks. The hydraulic system has a pump with fluid flow rate of 23 gpm (86 lpm)
or 32 gpm (121 lpm). The hydraulic pressure is 3335 psi (230 bar) or 4060 psi
(280 bar). The loader has a rated operating capacity of 2660 lbs (1207 kg)
and tipping load of 7600 lbs (3448 kg). The boom lifting force is 5023 lbs (2278
kg), and bucket breakout force is 7290 lbs (3307 kg).
| Refill Capacities |
Engine Oil Capacity, gal (L) .................... 2.9 (11.0)
Engine Coolant Capacity, gal (L) .................... 3.7 (14.0)
Hydraulic Tank Fluid Capacity, gal (L) .................... 10.3 (39.0)
Hydraulic System Fluid Capacity, gal (L) .................... 13.7 (52.0)
Final Drive Oil Capacity, qts (L) .................... 1.1 (1.0)
| Recommended Oil and Fluid |
Engine Oil Type .................... Cat DEO-ULS, SAE 10W-30, 15W-40. API Service CE, CF-4, CG-4
Engine Coolant Type .................... Caterpillar Diesel Engine Antifreeze/Coolant
Hydraulic Fluid Type .................... Cat HYDO Advanced, SAE 30, SAE 10W, Cat TDTO-TMS Multi-Grade
Final Drive Oil Type .................... Cat Synthetic GO, SAE 75W-90 or 75W-140 Gear Oil, API Service GL-5
| Service Intervals |
Lubricate Cylinder Pivot Points .................... Every 50 Hours
Check and Adjust Track Tension .................... Every 100 Hours
Check and Adjust Alternator/Fan Belt .................... Every 250 Hours
Check Final Drive Oil Level .................... Every 250 Hours
Clean Primary Engine Air Filter .................... Every 250 Hours
Clean Cab Air Filters .................... Every 250 Hours
Change Engine Oil .................... Every 500 Hours
Replace Engine Oil Filter .................... Every 500 Hours
Replace Primary Fuel Filter .................... Every 500 Hours
Replace Final Fuel Filter .................... Every 500 Hours
Replace Primary Engine Air Filter .................... Every 500 Hours
Replace Secondary Engine Air Filter .................... Every 500 Hours
Replace Hydraulic Tank Breather .................... Every 500 Hours
Change Final Drive Oil .................... Every 500 Hours
Change Hydraulic Fluid .................... Every 1000 Hours
Replace Hydraulic Oil Filter .................... Every 1000 Hours
Replace Alternator/Fan Belt .................... Every 1000 Hours
Replace Cab Air Filters .................... Every 1000 Hours
Service And Refill Cooling System .................... Every 2000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number .................... 377-6969
Primary Fuel Filter. Part Number .................... 363-5819
In-Line Fuel Filter. Part Number .................... 416-5884
Primary Engine Air Filter. Part Number .................... 110-6326
Secondary Engine Air Filter. Part Number .................... 110-6331
Cab Air Filter. Part Number .................... 265-6618, 265-6619
Hydraulic Oil Tank Breather. Part Number .................... 258-2829
Hydraulic Oil Filter. Part Number .................... 421-5479
