Caterpillar 247B Maintenance
The

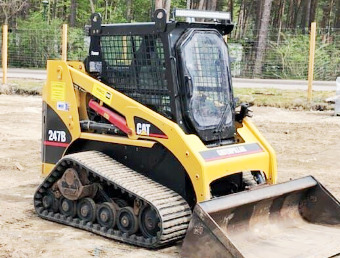

Cat 247B multi-terrain loader driveline system components: a 134.1 cu.in (2.2L)
Cat 3024CT 4-cycle 4-cylinder direct injection turbocharged diesel
engine with a rated power of 57 hp (43 kW), and single-speed hydrostatic
transmission. The hydraulic system has a pump with a rated flow of 15.6 gpm (60
lpm). The system pressure is 3335 psi (230 bar). The Caterpillar 247B is
equipped with vertical-lift loader boom, positive track drive, and 15" (380 mm)
rubber track undercarriage. The loader has a boom lift force of 3127 lbs (1418
kg) and bucket breakout force of 3734 lbs (1694 kg). The rated operating
capacity is 1367 lbs (620 kg), and tipping load is 3900 lbs (1770 kg).
| Refill Capacities |
Engine Oil Capacity, gal (L) .................... 2.1 (8.0)
Engine Coolant Capacity, gal (L) .................... 2.65 (10.0)
Hydraulic Tank Fluid Capacity, gal (L) .................... 9.2 (35.0)
Hydraulic System Fluid Capacity, gal (L) .................... 14.5 (55.0)
Final Drive Oil Capacity, qts (L) .................... 1.1 (1.0)
| Recommended Oil and Fluid |
Engine Oil Type .................... Cat DEO-ULS, SAE 10W-30, 15W-40. API Service CE, CF-4, CG-4
Engine Coolant Type .................... Caterpillar Diesel Engine Antifreeze/Coolant
Hydraulic Fluid Type .................... Cat HYDO Advanced, SAE 30, SAE 10W, Cat TDTO-TMS Multi-Grade
Final Drive Oil Type .................... Cat Synthetic GO, SAE 75W-90 or 75W-140 Gear Oil, API Service GL-5
| Service Intervals |
Lubricate Cylinder Pivot Points .................... Every 50 Hours
Check and Adjust Track Tension .................... Every 100 Hours
Check and Adjust Alternator/Fan Belt .................... Every 250 Hours
Check Final Drive Oil Level .................... Every 250 Hours
Clean Primary Engine Air Filter .................... Every 250 Hours
Clean Cab Air Filters .................... Every 250 Hours
Change Engine Oil .................... Every 500 Hours
Replace Engine Oil Filter .................... Every 500 Hours
Replace Primary Fuel Filter .................... Every 500 Hours
Replace Final Fuel Filter .................... Every 500 Hours
Replace Primary Engine Air Filter .................... Every 500 Hours
Replace Secondary Engine Air Filter .................... Every 500 Hours
Replace Hydraulic Tank Breather .................... Every 500 Hours
Change Final Drive Oil .................... Every 500 Hours
Change Hydraulic Fluid .................... Every 1000 Hours
Replace Hydraulic Oil Filter .................... Every 1000 Hours
Replace Alternator/Fan Belt .................... Every 1000 Hours
Replace Cab Air Filters .................... Every 1000 Hours
Service And Refill Cooling System .................... Every 2000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number .................... 220-1523
Primary Fuel Filter. Part Number .................... 156-1200
In-line Fuel Filter. Part Number .................... 1G-7206
Primary Engine Air Filter. Part Number .................... 231-0167
Secondary Engine Air Filter. Part Number .................... 231-0168
Cab Air Filter. Part Number .................... 231-8132, 303-6658
Hydraulic Oil Tank Breather. Part Number .................... 207-9729
Hydraulic Oil Filter. Part Number .................... 1G-8878
Alternator/Fan Belt. Part Number .................... 438-1597
