Case TV370 Maintenance
The

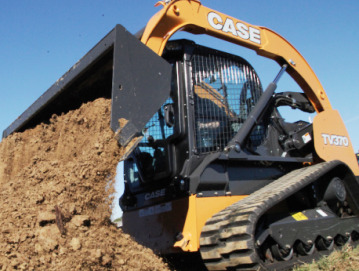

Case TV370 compact track loader is powered by 207 cu.in (3.4L) FPT F5H FL463
vertical in-line 4-cylinder turbocharged diesel engine with a rated power of
74 hp (55 kW) at 2500 rpm. The Case TV370 is equipped with a two-speed
transmission, vertical-lift loader boom, dozer-style undercarriage, and 17.7"
(450 mm) rubber tracks with steel inserts. The hydraulic system has a pump with
fluid flow rate of 24.2 gpm (91.5 lpm). The hydraulic pressure is 3050 psi (210
bar). The track loader has a rated operating capacity of 2590 lbs (1178 kg) and
tipping load of 7400 lbs (3364 kg). The lift height is 131.6"" (3340 mm) to
hinge pin, and dump height is 105.1" (2670 mm).
| Refill Capacities |
Engine Oil Capacity, gal (L) .................. 2.2 (8.5)
Engine Coolant Capacity, gal (L) .................. 5.0 (19.0)
Hydraulic Reservoir Capacity, gal (L) .................. 6.0 (22.7)
Hydraulic System Capacity, gal (L) .................. 11.9 (45.4)
Final Drive Gearbox Capacity, qts (L) .................. 1.4 (1.3)
Fuel Tank Capacity, gal (L) .................. 25.5 (96.5)
| Recommended Oil and Fluid |
Engine Oil Type .................. SAE 15W-40. API Service Category CH or higher
Engine Coolant Type .................. Extended-Life Coolant/Antifreeze
Hydraulic Fluid Type .................. Hy-Tran Premium Hydraulic Transmission Oil
Final Drive Gearbox Oil Type .................. Gearlube GL-3/GL-5, SAE 85W-140
| Service Intervals |
Lubricate Cylinder Pivot Points .................. Every 50 Hours
Check Hydraulic Fluid Level .................. Every 50 Hours
Check Tracks Tension .................. Every 50 Hours
Check Track Sprocket Bolts Torque .................. Every 50 Hours
Check Battery Connections .................. Every 100 Hours
Check Alternator/Fan Belt Tension .................. Every 100 Hours
Clean Primary Air Filter .................. Every 250 Hours
Change Engine Oil .................. Every 500 Hours
Replace Engine Oil Filter .................. Every 500 Hours
Replace Fuel Filter Element .................. Every 500 Hours
Replace Hydraulic Filter Element .................. Every 500 Hours
Change Final Drive Oil .................. Every 500 Hours
Change Hydraulic System Fluid .................. Every 1000 Hours
Replace Primary Air Filter .................. Every 1000 Hours
Replace Secondary Air Filter .................. Every 1000 Hours
Change Engine Coolant .................. Every 2000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number .................. 47535939
Engine Fuel Filter. Part Number .................. 84534796
Fuel Water Separator. Part Number .................. 87803443
Primary Engine Air Filter. Part Number .................. 84217229
Secondary Engine Air Filter. Part Number .................. 87682999
Hydraulic Oil Filter Element. Part Number .................. 47456328, 47710533
DEF Filter. Part Number .................. 47633768
Cab Air Filter. Part Number .................. 84376814, 84376815
