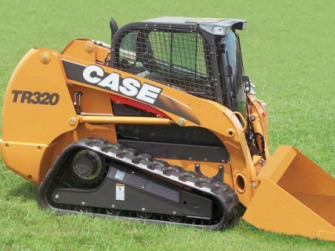

Case TR320 Specifications
The
Case TR320 compact track loader driveline system components: a 195 cu.in (3.2L)
FPT F5C E5454 4-cylinder turbocharged diesel engine with a rated power of 90 hp
(67 kW) and 2-speed hydrostatic transmission. The open center hydraulic system
has a pump with a rated flow of 22.5 gpm (85 lpm). The system pressure is 3000
psi (207 bar). The Case TR320 is equipped with a radial-lift loader boom,
planetary reduction, and 17.7" (450 mm) rubber tracks with steel inserts. The
loader has a boom lift force of 7760 lbs (3525 kg) and bucket breakout force of
8700 lbs (3955 kg). The rated operating capacity is 2240 lbs (1018 kg), and
tipping load is 6400 lbs (2900 kg).
| Engine Specs |
Engine Model .................. FPT F5C E5454
Engine Type .................. 4-cycle liquid-cooled diesel
Number of Cylinders .................. 4
Displacement, cu.in (L) .................. 195 (3.19)
Cylinder Bore, in (mm) .................. 3.89 (99.0)
Piston Stroke, in (mm) .................. 4.09 (104.0)
Aspiration .................. Turbocharged
Rated Engine Power, hp (kW) .................. 90.0 (67.0)
Rated Engine Speed, rpm .................. 2500
Maximum Torque, Nm (lb-ft) .................. 310 (229)
Torque Speed, rpm .................. 1400
Fast Idle Speed, rpm .................. 2600-2750
Low Idle Speed, rpm .................. 1075-1175
Compression Ratio .................. 17:1
Firing Order .................. 1-3-4-2
Fuel System .................. Direct injection
Fuel Filter Type .................. In-line strainer
Oil Filter Type .................. Spin-on, full-flow
Cooling System .................. Liquid
Water Pump Type .................. Centrifugal
Oil Pump Type .................. Rotor
Fuel Tank Capacity, gal (L) .................. 25.5 (96.5)
Oil Capacity, qts (L) .................. 10.0 (9.5)
Coolant Capacity, qts (L) .................. 12.1 (11.4)
Electrical System Rating, Volts .................. 12
Charging System .................. Alternator
Alternator Rating, Amps .................. 120
| Drive Train |
Drive System Type .................. Hydrostatic, 4-wheel drive
Number of Gears .................. 2 (low/high)
Final Drive Type .................. Planetary reduction
Brakes Type .................. Hydraulic wet disc
Forward Speed (Low), mph (kph) .................. 5.1 (8.2)
Forward Speed (High), mph (kph) .................. 7.6 (12.2)
Reverse Speed (Low), mph (kph) .................. 5.1 (8.2)
Reverse Speed (High), mph (kph) ..................7.6 (12.2)
| Undercarriage |
Tracks Type .................. Rubber with steel inserts
Track Adjustments .................. Hydraulic
Track Width (Std), in (mm) .................. 17.7 (450)
Track Width (Opt), in (mm) .................. 15.7 (400)
Ground Pressure (Std), psi (Bar) .................. 4.3 (0.297)
Ground Pressure (Opt), psi (Bar) .................. 4.2 (0.291)
Track Rollers (per side) .................. 4, triple flange
| Hydraulic System |
Hydraulic System Type .................. Open center
Hydraulic Pump Type .................. Gear
Pump Flow (Standard), gpm (Lpm) .................. 22.5 (85.0)
Pump Flow (High Flow), gpm (Lpm) .................. 12.1 (46.0)
System Pressure, Bar (psi) .................. 207 (3000)
Hydraulic Reservoir Capacity, gal (L) .................. 7.0 (26.5)
Hydraulic System Capacity, gal (L) .................. 11.7 (44.5)
Number of Valves .................. 3
| Loader Performance |
Rated Operating Capacity (35% tipping load), lbs (kg) .................. 2240 (1018)
Rated Operating Capacity (50% tipping load), lbs (kg) .................. 3200 (1450)
Tipping Load, lbs (kg) .................. 6400 (2900)
Boom Lifting Force, lbs (kg) .................. 7760 (3525)
Bucket Breakout Force, lbs (kg) .................. 8700 (3955)
Loader Boom Type .................. Radial-lift
| Dimensions and Weight |
Length (Track On Ground), in (mm) .................. 64.5 (1640)
Length (w/o Bucket), in (mm) .................. 117.4 (2980)
Length (Bucket On Ground), in (mm) .................. 142.2 (3610)
Width (w/o Bucket), in (mm) .................. 58.5 (1490)
Height (Operator Cab), in (mm) .................. 80.4 (2040)
Height (Boom Raised), in (mm) .................. 157.8 (4010)
Height to Hinge Pin (Fully Raised), in (mm) .................. 126.5 (3220)
Dump Angle At Max Height, deg .................. 38
Dump Height (Fully Raised), in (mm) .................. 102.4 (2600)
Dump Reach At Max Height, in (mm) .................. 21.6 (550)
Rollback Angle At Max Height, deg .................. 29.7
Rollback Angle At Ground Level, deg .................. 99.7
Departure Angle, deg .................. 32
Bucket Width, in (mm) .................. 78 (1980)
Ground Clearance, in (mm) .................. 9.5 (240)
Shipping Weight, lbs (kg) .................. 9265 (4200)
Operating Weight, lbs (kg) .................. 9600 (4355)
