ASV RT-65 Maintenance
The

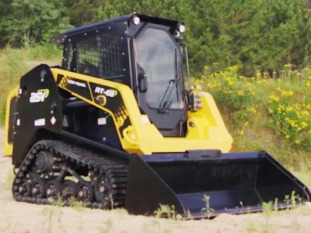

ASV RT-65 compact track loader driveline system components: a 134 cu.in (2.2L)
Deutz TCD2.2-T4F 4-cylinder turbocharged diesel engine with a rated
power of 67 hp (50 kW) and single-speed hydro transmission. The hydraulic system
has a pump with a rated flow of 27.4 gpm (103.7 lpm). The system pressure is
3300 psi (227 bar). The ASV RT65 is equipped with radial-lift loader boom, 15"
(380 mm) rubber tracks, and elevated track drive sprockets. The loader has a
maximum lift height of 116.5" (2960 mm) to hinge pin and dump height of 87.5"
(2225 mm). The rated operating capacity is 1925 lbs (873 kg), and tipping load
is 5500 lbs (2495 kg).
| Refill Capacities |
Engine Oil Capacity, gal (L) ...................... 2.1 (8.0)
Engine Coolant Capacity, gal (L) ...................... 2.5 (9.5)
Hydraulic Tank Fluid Capacity, gal (L) ...................... 3.3 (12.5)
Fuel Tank Capacity, gal (L) ...................... 23.2 (87.8)
| Recommended Oil and Fluid |
Engine Oil Type ...................... Multi-Grade 10W-30, 15W-40. API Service Category CH-4
Engine Coolant Type ...................... Ethylene Glycol (long life)
Hydraulic Fluid Type ...................... All Season MV
Undercarriage Grease ...................... Undercarriage Wheel Bearing Lube
| Service Intervals |
Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Hydraulic Fluid Level ...................... Every 50 Hours
Check Tracks Tension ...................... Every 50 Hours
Check Drive Sprocket Rollers ...................... Every 50 Hours
Check Battery Connections ...................... Every 100 Hours
Clean Primary Air Filter ...................... Every 200 Hours
Check Fan Belt Tension ...................... Every 250 Hours
Change Engine Oil ...................... Every 250 Hours
Replace Engine Oil Filter ...................... Every 250 Hours
Replace Hydraulic Filter Element ...................... Every 250 Hours
Replace Fuel Filter Element ...................... Every 500 Hours
Replace Primary Air Filter ...................... Every 1000 Hours
Replace Secondary Air Filter ...................... Every 1000 Hours
Change Hydraulic System Fluid ...................... Every 1000 Hours
Change Engine Coolant ...................... Every 2000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number ...................... 0404-518
Engine Fuel Filter. Part Number ...................... 0404-520
Engine Fuel Pre-Filter. Part Number ...................... 0404-519
Primary Engine Air Filter. Part Number ...................... 0201-510
Secondary Engine Air Filter. Part Number ...................... 0201-533
Hydraulic Charge Oil Filter. Part Number ...................... 0200-204
Case Drain Oil Filter. Part Number ...................... 2046-286
Hydraulic Filter. Part Number ...................... 7070-398
Fan Drive Belt. Part Number ...................... 0404-525
