ASV RT30 Maintenance
The

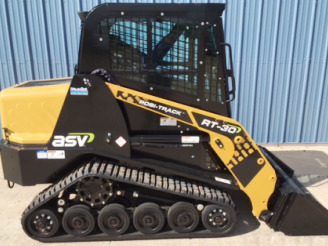

ASV Posi-Track RT30 compact track loader is powered by 92.1 cu.in (1.5L) Perkins
403D-15 vertical in-line three-cylinder indirect injection liquid cooled diesel
engine with a rated power of 32.7 hp (25.1 kW). The ASV RT-30 is
equipped with a single-speed transmission, radial-lift loader boom, and
suspended undercarriage with 11" (280 mm) rubber tracks. The hydraulic system
has a pump with fluid flow rate of 10 gpm (38 lpm). The hydraulic pressure is
3000 psi (207 bar). The loader has a rated operating capacity of 665 lbs (302
kg) and tipping load of 1900 lbs (862 kg). The lift height is 101" (2565 mm) to
hinge pin, and dump height is 77" (1955 mm).
| Refill Capacities |
Engine Oil Capacity, gal (L) ...................... 1.6 (6.1)
Engine Coolant Capacity, gal (L) ...................... 1.5 (5.6)
Hydraulic Tank Fluid Capacity, gal (L) ...................... 8.0 (30.5)
Fuel Tank Capacity, gal (L) ...................... 10.0 (38.0)
| Recommended Oil and Fluid |
Engine Oil Type ...................... Multi-Grade 10W-30, 15W-40. API Service Category CH-4
Engine Coolant Type ...................... Ethylene Glycol (long life)
Hydraulic Fluid Type ...................... All Season MV
Undercarriage Grease ...................... Undercarriage Wheel Bearing Lube
| Service Intervals |
Lubricate Cylinder Pivot Points ...................... Every 50 Hours
Check Hydraulic Fluid Level ...................... Every 50 Hours
Check Tracks Tension ...................... Every 50 Hours
Check Drive Sprocket Rollers ...................... Every 50 Hours
Check Battery Connections ...................... Every 100 Hours
Clean Primary Air Filter ...................... Every 200 Hours
Check Fan Belt Tension ...................... Every 250 Hours
Change Engine Oil ...................... Every 250 Hours
Replace Engine Oil Filter ...................... Every 250 Hours
Replace Hydraulic Filter Element ...................... Every 250 Hours
Replace Fuel Filter Element ...................... Every 500 Hours
Replace Primary Air Filter ...................... Every 1000 Hours
Replace Secondary Air Filter ...................... Every 1000 Hours
Change Hydraulic System Fluid ...................... Every 1000 Hours
Change Engine Coolant ...................... Every 1000 Hours
| Replacement Parts |
Engine Oil Filter. Part Number ...................... 0200-377
Engine Fuel Filter. Part Number ...................... 0200-213
Primary Engine Air Filter. Part Number ...................... 0304-434
Secondary Engine Air Filter. Part Number ...................... 0304-435
Hydraulic Oil Filter. Part Number ...................... 0200-204
Fan Drive Belt. Part Number ...................... 2010-117
