ASV RC-60 Troubleshooting
The

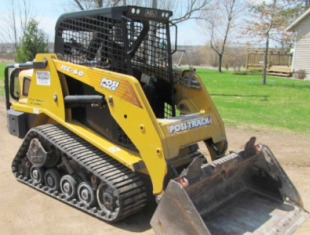

ASV Posi-Track RC60 compact track loader driveline system components: a 135
cu.in (2.2L) Perkins 404C-22T 4-cylinder indirect injection turbocharged diesel
engine with a rated power of 60 hp (44.7 kW), and 1-speed hydro transmission.
The hydraulic system has a pump with a rated flow of 17.4 gpm (65.9 lpm). The
system pressure is 3000 psi (207 bar). The ASV RC-60 is equipped with
radial-lift loader boom, axial-piston drive pumps, and 15" (380 mm) rubber
tracks with embedded co-polymer cords. The loader has a max lift height of
115.5" (2920 mm) to hinge pin. The rated operating capacity is 1330 lbs (603
kg), and tipping load is 3800 lbs (1725 kg).
| Engine Troubleshooting |
Engine starts hard or won't start
Air in the fuel system - Air bleeding.
Fuel filter plugging - Clean or replace the filter.
Dirty or faulty injection nozzles - Replace injection nozzles.
Water in the fuel system - Change fuel and repair fuel system.
Valve out of adjustment - Need to adjust valve clearance.
Faulty fuel injection pump - Replacement or repair required.
Diesel starts but immediately shuts off
Air cleaner is clogged - Clean or change.
Clogged fuel filter - Replace the filter element.
Fuel injection pump has loose connections - Tighten the connections.
Dirty or defective injectors - Test and replace fuel injectors if necessary.
Faulty fuel injection pump - Repair or install a new fuel pump.
Engine stalls during operation
Engine is not fully warmed up - Normalize the temperature by warming up the engine.
Fuel filter element clogging - Replace filter element.
Air trapped in fuel system - Bleed air.
Clogged injection nozzle - If necessary, replace with a new nozzle.
Wrong setting of fuel injection pump timing - Set it up as required.
Engine stalling at idle
Incorrectly set low idle speed - Adjust as required.
Fuel injection pump damage - Rebuild or install a new injection pump.
Clogged or defective injectors - Inspect fuel injectors and change as required.
Valve out of adjustment - Adjustment procedure required.
Diesel engine is losing power
Clogged air cleaner - Clean or change.
Dirty or faulty injection nozzles - Test injection nozzles and change if necessary.
Uneven fuel injection pressure - Adjust to correct pressure.
Valve clearance is not correct - Adjust to proper valve clearance.
Wrong adjustment of low idle speed - Correct low idle settings.
Fuel lines or hoses clogging - Fuel hoses and lines must be clean.
Cylinder head gasket is worn - Replace cylinder head gasket.
Piston rings are worn or damaged - Replace the piston rings as required.
Engine overheats
Engine has a lack of coolant - Fill radiator to proper level and check components for faults.
Lack of engine oil - Check oil level and add oil as required.
Radiator fins are clogged or radiator cap is faulty - Clean radiator or install new cap.
Loose or defective fan belt - Change as required.
Engine overload - Load reducing is recommended.
Low oil pressure
Engine oil insufficient - Fill crankcase to proper oil level.
Oil filter element clogged - Change or service engine oil filter.
Wrong oil viscosity - Use the specified type of engine oil.
Crankshaft bearing has incorrect oil clearance - Change bearings.
Defective oil pump - Inspect and change as required.
Engine knocking or noise
Low engine oil level - Check oil level and add oil as required.
Engine is cold - Warm up the engine.
Timing of fuel injection pump is incorrect - Adjust fuel injection pump as required.
Incorrectly set low idle speed - Adjust as required.
Defective fuel injectors - Clean or replace fuel injectors.
Connecting rod is misaligned or defective - Need to change or align the connecting rod.
Broken or worn pistons - Replace the pistons.
| Drive System Troubleshooting |
Drive system won't work in one direction or either direction
Low hydraulic fluid level - Fill up the hydraulic fluid.
Undercarriage tracks are damaged or blocked - Repair or remedy blockage.
Relief valve is defective - Repair or replace relief valve.
Suction line or hydraulic filter is dirty - Change hydraulic filter or service suction line.
Faulty foot or hand controls - Repair or change.
Drive motor or pump is defective - Inspect and change as required.
Machine does not move straight or moves jerky
Undercarriage tracks are defective or jammed - Remove jamming or repair tracks.
Tracks are faulty or sagging - Replace tracks or adjust track sag with tension.
Track frame is clogged with debris, dirt, or foreign objects - Clean undercarriage track frame, remove foreign objects and debris.
Loss of power
Hydraulic oil filter is clogged - Replace hydraulic filter.
Defective or open relief valve - Close or change relief valve.
Worn or faulty transmission components - Inspect and change defective parts.
Damaged input drive shaft - Service or change faulty drive shaft.
Air trapped in hydraulic system - Need to bleed air.
Drive system keeps overheating
Hydraulic fluid level low - Fill up the hydraulic fluid.
Hydraulic fluid filter is dirty - Change or clean hydraulic filter.
Relief valve is worn or damaged - Repair or change.
Drive pump or hydraulic motor malfunction - Replace or repair faulty component.
Hydraulic oil cooler is dirty - Cooling fins should be cleaned.
Transmission overloading - Load should be reduced.
Drive system is noisy
Oil viscosity is wrong - Use oil of proper viscosity.
Air in the hydraulic system - Bleed air from system.
Drive pump or hydraulic motor is damaged - Replace or repair faulty component.
Mechanical components of drive system are damaged or worn - Check the components for defect or damage and change if necessary.
| Hydraulics Troubleshooting |
Hydraulic system overheated
Hydraulic pressure is incorrect - Set pressure correctly.
Main relief valve improper adjustment or failure - Replace or set up the relief valve.
Hydraulic oil is dirty - The oil must be changed.
Not enough hydraulic fluid in the system - Fill the hydraulic system with oil.
Faulty hydraulic oil pump - Repair or install new hydraulic pump.
Lift arm can't drop or lift
Damaged lift controls - Inspect and repair if necessary.
Hydraulic pump failure - Install new pump or repair it.
Defective hydraulic control valve - Replace or repair the valve.
Hydraulic cylinder is defective - Repair or install a new lift cylinder.
Insufficient hydraulic fluid - Add fluid as required.
Bucket does not function
Bucket tilt controls malfunction - Repair or replace.
Hydraulic pump failure - Repair or replace pump if necessary.
Hydraulic control valve is faulty - Repair or change the valve.
Damaged bucket cylinder - Repair or change cylinder.
Hydraulic fluid is insufficient - Fill the system to proper hydraulic fluid level.
Bucket or lift arm is working slowly
Defective hydraulic pump - Check hydraulic pump flow and replace pump if necessary.
Leaking hydraulic cylinder - Replace cylinder piston seals.
Hydraulic fluid is insufficient - Checking hydraulic fluid level and add if necessary.
Defective or not adjusted hydraulic control valve - Adjust properly or repair.
Low hydraulic pressure - Hydraulic pressure must be set correctly.
Lift arm or bucket jerks when working
There is air in the hydraulic system - Bleed hydraulic system.
Hydraulic oil filter element clogging - Clean or change the filter.
Hydraulic oil is dirty - Fill up with fresh hydraulic oil.
Cylinder tube or rod is scored - Replace failed component.
Excessive hydraulic pump noise
Hydraulic leaks or lack of oil - Correct hydraulic leaks or top up oil as needed.
Hydraulic filter is dirty - Clean or install new filter.
Suction line is clogged - Suction line needs to be cleaned.
Air trapped in hydraulic pump - Remove air from hydraulics.
Pump parts are damaged - Install new hydraulic pump or rebuild it.
| Electrical Troubleshooting |
Battery does not charge
Corroded or loose electrical wire connections - Service or tighten cable connections.
Defective battery terminal clamps - Replace terminal clamps.
Bad cell in battery - Replace the battery.
Damaged or loose belt - Belt needs to be adjusted or changed.
Starter turning slow
Battery capacity is low - Battery needs to be recharged.
Battery runs out quickly - Service charging system or replace battery.
Battery terminals are corroded or wires are disconnected - Check wiring connections and replace or clean terminals.
Starter motor won't turn
Battery is drained or worn - Battery needs to be recharged or replaced.
Wiring is improperly connected or disconnected - Check wiring and connect properly.
Low battery output - Battery needs to be recharged.
Starter motor failure - Repair or replace starter.
