ASV RC-30 Troubleshooting

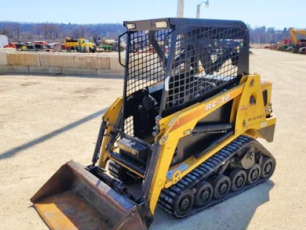

The
ASV Posi-Track RC30 compact track loader is powered by 92 cu.in (1.5L) Perkins
403D-15 3-cylinder indirect injection liquid cooled diesel engine with a rated
power of 31.5 hp (23.5 kW). The ASV RC-30 is equipped with a
single-speed hydro transmission, radial-lift loader boom, 11" (280 mm) rubber
tracks with embedded co-polymer cords, and elevated track drive sprockets. The
hydraulic system has a pump with fluid flow rate of 10 gpm (38 lpm). The
hydraulic pressure is 3000 psi (207 bar). The track loader has a rated operating
capacity of 560 lbs (255 kg) and tipping load of 1600 lbs (725 kg). The maximum
lifting height is 80.3 inches (2040 mm) to hinge pin.
| Engine Troubleshooting |
Engine hard to start or won't start
Air trapped in fuel system - Bleed air.
Fuel filter element is clogged - Service the filter.
Faulty or dirty injection nozzles - Check injection nozzles and replace if required.
Water in the fuel system - Change fuel and repair fuel system.
The valve clearance is incorrect - Have it adjusted.
Fuel injection pump malfunctioning - Repair or install a new fuel pump.
Diesel starts and suddenly stops
Air cleaner is dirty - Clean or replace air cleaner element.
Fuel filter plugging - Service or replace the filter.
Fuel injection pump leakage - Check the fuel injection pump for leaks and fix it.
Dirty or defective injectors - Replace fuel injectors.
Fuel injection pump is damaged - Change or repair the pump.
Engine shuts off while running
Low coolant temperature - Normalize the temperature by warming up the engine.
Fuel filter element clogging - Replace the filter element.
Air trapped in fuel system - Bleed air.
Fuel injection nozzles are faulty or clogged - Change fuel injection nozzles.
Timing of fuel injection pump is incorrect - Set it up as required.
Engine stalls while idle
Low idle speed setting is not correct - Correct the settings.
Fuel injection pump is damaged - Replacement or repair required.
Damaged or clogged injectors - Replace or clean fuel injectors.
Incorrect valve clearance - Adjust to proper valve clearance.
Lack of engine power
Clogged air filter - Clean or replace element.
Fuel injection nozzles fault - Service or change injection nozzles.
Fuel injection pressure is incorrect - Adjust pressure to proper level.
The valve clearance is not adjusted - Correct valve clearance.
Incorrect low idle speed adjustment - Correct the settings.
Clogged fuel lines or hoses - Service fuel lines and hoses.
Cylinder head gasket is blown - Install new cylinder head gasket.
Piston rings are worn or defective - Change piston rings.
Engine overheats
Low engine coolant - Fill the cooling system and check components for leaks or other faults.
Low engine oil level - Check and refill engine oil.
Faulty radiator cap or dirty radiator fins - Clean radiator or replace cap.
Fan belt is loose or defective - If necessary, replace the belt.
Engine overloaded - Load reducing is recommended.
Low oil pressure
Lack of oil - Need to add oil.
Clogged oil filter element - Change or service engine oil filter.
Incorrect oil viscosity - Drain and refill with oil of correct grade and viscosity.
Excessive oil clearance of crankshaft bearing - Bearing replacement required.
Defective oil pump - Check and replace if necessary.
Engine noise or knocking
Engine oil level is insufficient - Checking oil level and add if necessary.
Engine has not warmed up to recommended temperature - Warm up engine as required.
Timing of fuel injection pump is incorrect - Adjust as recommended.
Low idle speed set incorrectly - Need to adjust idle speed.
Defective fuel injectors - Replace or clean fuel injectors.
Connecting rod misalignment or failure - Alignment procedure or replacement is required.
Worn or broken pistons - Pistons need to be replaced.
| Drive System Troubleshooting |
Drive system сan't work in either direction
Low hydraulic oil level - Fill the system to proper hydraulic oil level.
Defective or blocked undercarriage tracks - Repair or remove blockage.
Relief valve is worn or damaged - Rebuild or install a new relief valve.
Hydraulic filter or suction line is plugged - Service suction line or replace hydraulic filter.
Foot or hand controls are defective - Repair or change.
Damaged drive pump or motor - Check and repair if required.
Machine won't move straight or moves jerky
Track mechanism is defective or jammed - Remedy jamming or repair tracks.
Worn or loose tracks - Adjust track tension as required or replace tracks.
Track frame is clogged with debris, dirt, or foreign objects - Clean undercarriage track frame, remove foreign objects and debris.
Reduced power
Hydraulic oil filter is dirty - Replace or clean hydraulic filter.
Relief valve is open or defective - Close or change relief valve.
Faulty or damaged transmission components - Check and replace faulty components.
Stuck input drive shaft - Service or change faulty drive shaft.
Air in the hydraulic system - Air bleeding is required.
Drive system overheats
Hydraulic fluid is insufficient - Checking hydraulic fluid level and add if necessary.
Clogged hydraulic fluid filter - Replace hydraulic filter.
Relief valve is damaged - Repair or replace relief valve.
Drive pump or hydraulic motor malfunction - Repair or replace faulty component.
Clogged hydraulic oil cooler - Clean the cooling fins.
Drive system overload - Reduce the load.
Drive system makes excessive noise
Oil viscosity is incorrect - Use oil of proper viscosity.
Air trapped in hydraulic system - Bleed hydraulic system.
Damaged drive pump or hydraulic motor - Repair or replace faulty component.
Worn or damaged mechanical components of drive system - Inspect the parts for defect or damage and repair as required.
| Hydraulics Troubleshooting |
Hydraulic system overheats
Hydraulic pressure incorrectly adjusted - Correct setting is required.
Main relief valve improper adjustment or failure - Replace or set up the relief valve.
Hydraulic fluid is contaminated - Change hydraulic fluid.
Not enough hydraulic oil in the system - Fill the hydraulic system with oil.
Hydraulic pump is faulty - Repair or replace pump if necessary.
Boom can't lift or drop
Lift controls are damaged - Repair or change.
Hydraulic pump failure - Repair or install new hydraulic pump.
Hydraulic control valve is defective - Change or repair hydraulic valve.
Hydraulic cylinder malfunction - Repair or replace hydraulic cylinder.
Hydraulic fluid is insufficient - Checking hydraulic fluid level and add if necessary.
Bucket is not working
Defective bucket controls - Replace or repair.
Defective hydraulic pump - Repair or install new hydraulic pump.
Damaged hydraulic control valve - Repair or replace hydraulic valve.
Hydraulic bucket cylinder not working - Repair or replace cylinder.
Insufficient hydraulic oil - Checking hydraulic oil level and add if necessary.
Bucket or lift arm is moving slowly
Worn hydraulic oil pump - Check the pump capacity and replace pump if required.
Oil leaks from hydraulic cylinder - Replace cylinder piston seals.
Low hydraulic fluid level - Fill up the hydraulic fluid.
Faulty or incorrect setting hydraulic control valve - Repair or set properly.
Hydraulic system loosing pressure - Adjust it correctly.
Jerky operation of the bucket or boom
Air trapped in hydraulic system - Air bleeding is required.
Hydraulic oil filter clogging - Clean or replace the filter.
Hydraulic fluid is dirty - Hydraulic fluid change required.
Cylinder rod or tube is scuffed - Replace defective component.
Hydraulic pump makes excessive noise
Insufficient oil level or leaking hydraulic system - Correct hydraulic leaks or top up oil as needed.
Hydraulic filter is dirty - Clean or install new filter.
Suction line clogging - Need to service the suction line.
Pump is sucking air - Bleed air from hydraulics.
Pump parts are worn out - Rebuild or change hydraulic pump.
| Electrical Troubleshooting |
Battery won’t charge
Loose or corroded electrical wiring connections - Clean or tighten connections.
Faulty electrical terminal connectors - Replace terminal connectors.
Battery bad cell - Install a new battery.
Belt is worn or loose - Need to adjust belt tension or replace belt.
Starter motor cranks slow
Battery power is low - Battery needs to be recharged.
Battery discharges quickly - Service or replace the battery.
Bad terminals or disconnected battery cables - Connect wiring correctly or install new terminals.
Starter motor won't turn
Battery is discharged or worn - Change or recharge battery.
Wiring is incorrectly connected or disconnected - Inspect wiring and connect correctly.
Low battery power - Battery is drained, recharge it.
Starter motor failure - Repair or change starter.
